Wood Cutting Heavy Duty Single Blade Straight Line Rip Saw for Plywood

Product Description

Technical Paremeters

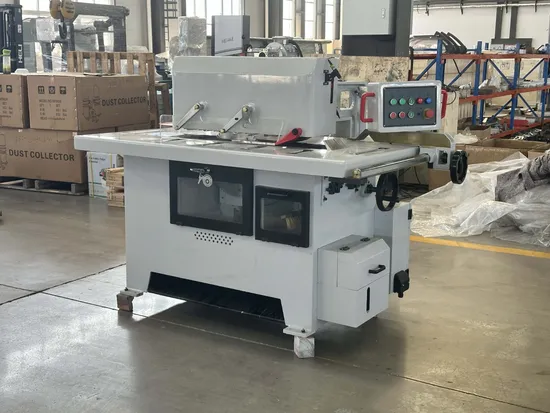

MJ163 Automatic Bottom Single Line Rip Saw Machine

Model				MJ163
Cutting thickness (when saw blade outer diameter is 355mm)				85cm
Minimum cutting thickness				10mm
Minimum cutting length				220mm
Throat distance				450mm
Maximum saw diameter				355mm
Saw blade inner diameter				50.8mm
Feeding speed				12~30m/min
Saw shaft speed				3000r/min
Total machine power				12.28KW
Vacuuming wind speed				30~35m/s
Machine dimensions				1880x1400x1360
Phase bed weight				1400KGS

Product Details

Rebouce Device:
Anti-kickback device on working platform, to avoid working pieces'kickback and ensure safety cutting.
Automatic lubrication system:
Automatic lubrication system,circularly lubricated the entire equipment, insure efficient operation and increase service life.
Strong Power:
Main spindle made from special material and the motor adopt unitarily design, guarantees highaccuracy and strong power.
Sided by the board
Specially designed two-side fence avoidsinequal wear because of long-term usageof single side for a longer service life ofguide way and link conveyor.

Frequency conversion speed control panel:
Individual switching of each part, convenient and safe operation.
Pressure wheel crawler:
Multiple sets of pressure wheels and twill crawler tracks can effectively control material conveying.
Infrered:
Selected for infrared calibrationdevice, the workpiece: calibrationcan be real-time monitoring.
Worktable:
Hard film anti-rust treatment of the worktable surface, smooth and flat table surface, durable.
