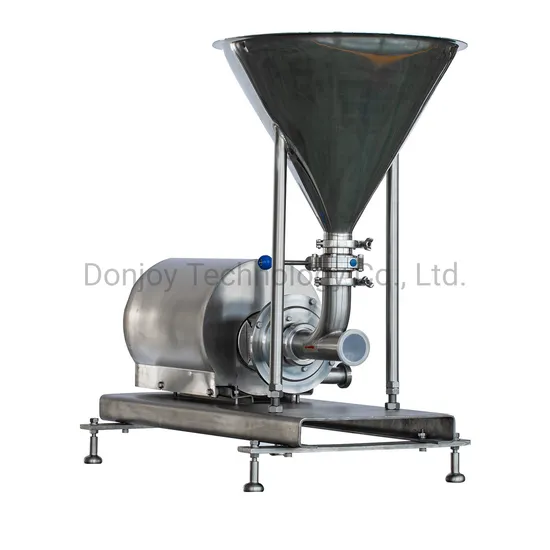

Stainless Steel Homogeneous Emulsifying Regulating Mixing Pump with Mechanical Seal
| US$2,000.00-7,100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JZ1
Certification
3A, FDA
Condition
New
Main Material
Stainless Steel
Stirring Type
Spiral
Working
Shear Mixer
Function
Emulsification, Mixing, Homogenization
Motor
ABB Motor
Temperature
-20~140degree
Max. Flow
40t/H
Max. Power
45kw
Connection Way
Threaded, Clamped, Flanged etc.
Mechanical Seal
Sic/C/EPDM
Surface Treatment
0.8/0.6/0.4 Micrometer
Material
SS316L
Media Refinement
300 Micrometer
Motor Cover
Included
Mixer Type
Homogenizer
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Plywood Case
Specification
JZ1-130~240
Trademark
DONJOY & OEM
Origin
Wenzhou, China
HS Code
8413810090
Production Capacity
30, 000 Sets/Year
Product Description
Stainless Steel Homogeneous Emulsifying Regulating Mixing Pump with Mechanical SealAdvantage
High efficiency, dispersing, cutting, refining, smashing, emulsifying, mixing, homogenizing, high cleanliness
Specification
| Item Name: | Single stage Homogeneous Emulsifying Pump Food Grade |
| Material: | SS316L/1.4404 |
| Seal Material: | EPDM (Standard, FDA approval), or FPM (Viton) |
| Max. Flow: | 40 m3/h |
| Max. Power: | 45KW |
| Media refinement: | ≤ 60 GRIT (≈300 μm) |
| Mechanical seal: | SIC/C/EPDM(Standard) |
| Temperature: | -20~140 degree centigrade |
| Surface treatment: | ≤RA 0.8μm, ≤RA 0.6μm, ≤RA 0.4μm |
| Mechanical seal: | Single mechanical seal & double mechanical seal |
| Motor: | ABB/domestic |
| Motor Frequency: | 50HZ, 60HZ |
| Available connection: | Clamped, Threaded, Flanged, Aseptic flanged |
| Available standard: | DIN, SMS, 3A, RJT, ISO, IDF |
| Operated: | By electic motor |
| Low discharge : | Diaphragm valve/ball valve/butterfly valve |
| Certification: | 3-A-02-11(N.O.1579); MD/06/42-EC(N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004; |
| Application range: | Food, beverage, pharmacy, health protection, fine chemistry, coating, pesticide, daily chemical and papermaking etc. |
| Packaging Details: | By plywood case |
