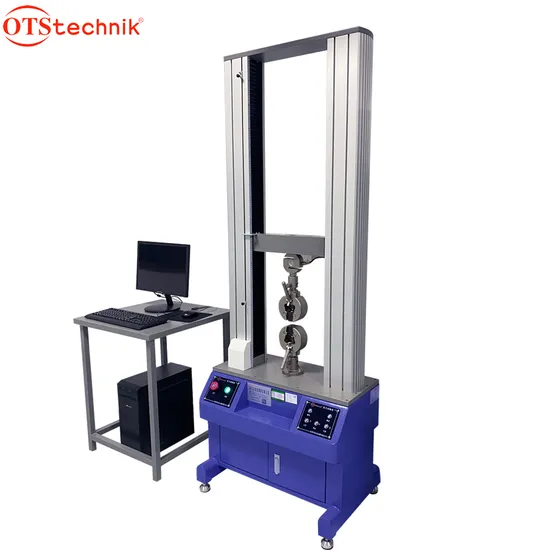

Industry-Leading Audited Factory Universal Material Strength Tensile Compression Test/Testing Machine

Product Description

Universal Material Tensile Compression Testing Machine Applicable Industries
Fast Delivery Parts Of Universal Testing Machine,Tensile Compression Testing Machine,Universal Testing Equipment can test various materials (both finished and semi-finished products ) of tensile strength ,compressive strength and elongation ,can do stripping ,tear strength ,flexural ,compression test and etc. It can connect up to the computer and display or printout the test times , test value , max. value , etc . Also it can make various report forms according to the requirements .
Fast Delivery Parts Of Universal Testing Machine,Tensile Compression Testing Machine,Universal Testing Equipment is widely used in all kinds of hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel,compression, bending, shear, three-point bending ... and other physical test performance.
Technical parameters

Model	XB-OTS-600
Max capacity	5,10,20,50,100,200,250kgf 500kgf 2T 10T can be setting
Induction method :	Precision load cell (sensor)
Max. Load Capacity :	5000kg
Force Resolution/Accuracy:	± 0.5%
Accuracy class :	0.5
Resolution:	1/1,000,000
Test width	400mm(Standard specifications special specifications can be customized)
Stroke Resolution:	0.01mm
Machine Dimension (W*D*H)	800×530×1600mm (L*W*H) or Customized
Weight:	About 65kg
Power :	1 phase 220V 50Hz
Packing	Standard Export plywood case
Displacement Control:	Displacement encoder count with four frequency technology So that the displacement of four times the resolution can up to 0.0005mm

Force system: servo drives + Servo motor + precision ball screw drive
Control system:Mechanical transmission + TM2101 + Pulse Command and Control System control
Measurement and Control System : TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher
Obtain data: The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing
Computer style ( can connect to computer ) controlled by computer Can print out the detailed curve graph of the test results
With different test fixtures, it can meet the mechanical performance test of different products and materials in different industries
Standard accessories:
Following are Fixture samples, we can offer proper fixtures depends on your products
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics
Corresponding Standard:
ASTM D903,F2258,GB/T 2790/2791/2792, CNS-11888,JIS K6854,GB/T 6329,BS EN 14410-2003,YY/T 0729,GOST 21751 and other standards.
Advantage Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE Customer Support Services Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Related Products
Company Profile
Dongguan Xinbao Instrument Co., Ltd, with its own brand--OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers and so on. Products made by OTS reach international standards: ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, plastic, metal, building materials, aviation, etc.
Manufacturing Technique Customer Photos Now OTS has its main production base in Dongguan, a branch in Suzhou and offices in South Asia, Europe, USA. OTS also owns an independent laboratory which exhibits all currently produced machines under CNAS calibration, so customers can check the function and quality immediately. Equipped with over 30 workers in a metal plate department, OTS is capable to produce customized shells; What's more, OTS has enough stock to satisfy customers need in time. In the meanwhile, every machine must be examined for 3~days before shipment and with lifetime maintenance service. Certifications Packing&Shiping FAQ 1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2.What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3.Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4.How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly. Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention~Thank you!
