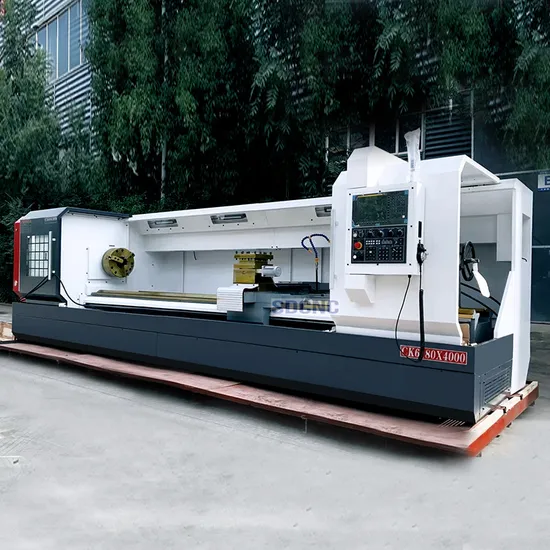

Ck6180 CNC Lathe Machine Tool Strong Cutting Rigidity with Siemens System
| US$20,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6180
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Main Motor Power
15kw
Machining Size Range
4000mm
Spindle Speed Range
30-140 100-435rpm
The Diameter of Tailstock
100mm
Transport Package
Wood Packaging
Specification
4790*2000*1700mm
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
4790.00cm * 2000.00cm * 1700.00cm
Package Gross Weight
4400.000kg
Product Description
CNC Lathe Features:
1.Frequency conversion stepless speed regulation
2. With servo system
3. Four position electric turret
4. Standard configuration: spring chuck and chuck double use
5.Optional configuration: hydraulic chuck, gang type tool post
The main feature :
1) Machine are made of high intensional cast iron with good aseismatic and high rigidity
2)Spindle of heavy-cutting structure to achieve high rigidity and high precision
3)With electrical turret,it can achieve high positioning ,fast speed for toolchange and high performance
4)With feeding motor and leadscrwe for type of direct connection,it can assure the machining precision and
positioning accuracy
5)Tailstock can be adopted by hydraulic driving to make sleee travel bigger and easy operation
6)Complete closed cover can protect the iron scraps splashing out. Product Description
| Specifications | CK6163 | CK6180 | CK61100 |
| Max.Swing over bed | 630mm | 800mm | 1000mm |
| Max.workpiece length | 1500/2000/3000/4000 | ||
| Spindle taper | 1:20/120 | ||
| Chuck size | 320mm Manual 3 jaws | ||
| Spindle bore diameter | 104mm | ||
| Spindle nose | C11 | ||
| Range of spindle speeds(3 steps)(Auto.change gear) | Three gears ,smooth adjustment 21-1500r/min ( L 162-1500 M 66-500 H 21-150) | ||
| X -axis motor torgue | 10N.m | 15N.m | |
| Z -axis motor torgue | 15N.m | 18N.m | |
| Tail stock center travel | 250mm | ||
| The diameter of tailstock | 100mm | ||
| Tail stock sleeve taper | Morse NO.6 | ||
| Tool post type | Vertical-electric four station | ||
| Tool section size | 240x240mm | ||
| X/Z rapid traverse | 4/8m/min | ||
| Spindle Motor | 11KW | 15KW | |
| Positioning accuracy | 0.020mm | ||
| REPositioning accuracy | 0.1 | ||
