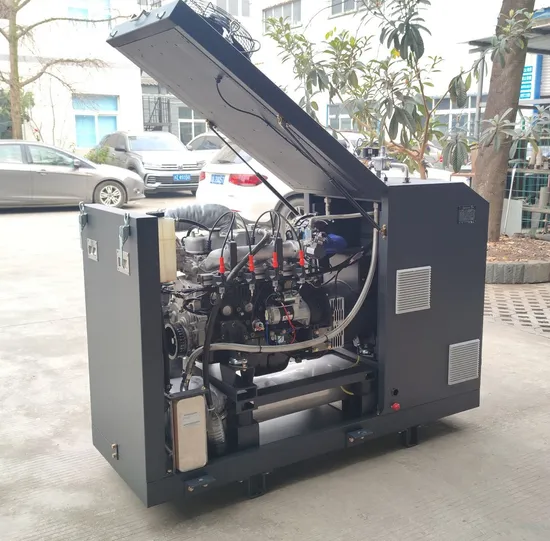

50Hz Low Noise Level Water Cooled Engine Natural Gas Micro Generator CHP Cogenerator 20kw 25kVA

Product Description

50Hz Low Noise Level Water Cooled Engine Natural Gas Micro Generator CHP Cogenerator 20kw 25kva
The CHP may be required to operate for long periods of time without an operator on hand to monitor such engine conditions as coolant temperature, oil pressure or rpm. For that reason, the engine has several devices designed to protect it against potentially damaging conditions by automatically shutting down the unit when the oil pressure is too low, the coolant temperature is too high, the coolant level is too low, or the engine is running too fast.
Powered by I suzu 4JB1 engine, fuel source can be Biogas, natural gas, LPG.
-Biogas CHP 16kw/20kva
-Natural gas CHP 20kw/25kva
-LPG CHP 20kw/25kva
60Hz is also available on request.
Our CHP is with integrated control cabinet,easy for installation, on the top safe gas train is installed. Advanced gas engine control system,Auto Lambda control,easy start.
Main Characters
-low engine speed RPM1500, longer service life
-fully open design, easy for maintenance work
-super silent design, low noise level
-higher overall efficiency

Model Name	SP20N
Frequency (Hz)	50
Voltage	400/230
Fuel Type	Natural gas
Continuous Power(KWe)	20
Thermal Output(KWt)	42.5
Electrical Efficiency	28.4%
Thermal Efficiency	60.4%
Overall Efficiency	88.8%
Engine	I suzu
Alternator	Kwise, other brands is available on request
Controller	ComAp
Canopy	With
Noise level@100% load	≤62dB(A)@1meter
Genset Gas Inlet Pressure	2-5kpa
Gas consumption@100% load	0.357m3/kwh

For more information about the CHP, please consult with your sales representative.Thanks. More Information About Our Factory Our Installations Worldwide
