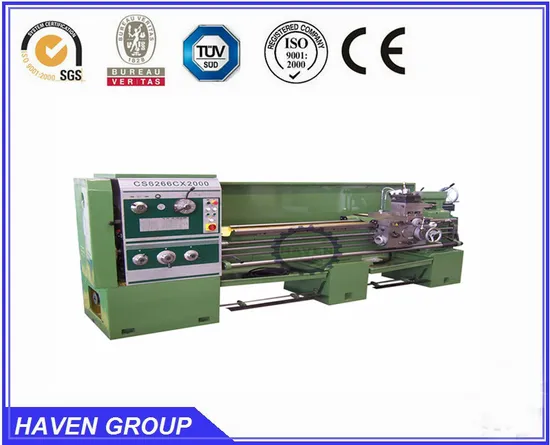

CS6166BX2000 China Horizontal Turning Machine

Product Description

CS6166BX2000 China Horizontal Turning Machine
Main feature:
- Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
- Threading Inch, Metric, Module and D. P.;
- Perform drilling, boring and groove broaching;
- Machine all kinds of flat stocks and those in irregular shapes;
- Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
- Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
- There are hand brake and foot brake for users to choose;
- These series lathes operate on power supply of different voltages (220V, 380V, 420V) and different frequencies (50Hz, 60Hz).
Standard accessory:
3 jaw chuck;4 jaw chuck;follow rest;steady rest;working lamp;coolant system;dead center;Center sleeve;tools & tool box;splash guard;foot brake;face plate;driving plate;English manual;
Main specification:

SPECIFICATIONS		UNIT	CS6240	CS6250 CS6250B CS6250C	CS6266B CS6266C	CQ6280B CQ6280C
Capacity	Max. swing dia. over bed	mm	Φ400	Φ500	Φ660	Φ800
	Max. swing dia.in gap	mm	Φ630	Φ710	Φ870	Φ1000
	Max. swing dia. over slides	mm	Φ200	Φ300	Φ420	Φ560
	Max. workpiece length	mm	1000/1500/2000/3000			2000/3000
Spindle	Spindle bore diameter	mm	Φ52	Φ52,B type 82mm, C type 105mm
	Type of spindle nose	no	CS6240/CS6250: ISO 702/III NO.6 bayonet lock others:ISO 702/II NO.8 com-lock type
	Spindle speed	rpm	24 steps 9-1600 C type :12 steps 36-1600			B type: 24 steps 8-1400 C type:12 steps 30-1400
	Spindle motor power	KW	7.5
Tailstock	Diameter of quill	mm	Φ75			Φ90
	Max. travel of quill	mm	150
	Taper of quill (Morse)	MT	5
Turret	Tool O.D. size	mm	25X25
Feed	Max. X travel	mm	145
	Max. Z travel	mm	320
	X feed range	mm/r	0.012-2.37mm/rev, 93kinds; C series0.027-1.07mm/rev, 65kinds
	Z feed range	mm/r	0.028-6.43mm/rev, 93kinds; C series0.063-2.52mm/rev, 65kinds
	Metric threads	mm	0.5 - 224 mm, 48 kinds; C series 1 - 14 mm, 22 kinds
	Inch threads	t.p.i	72 - 1/8 TPI, 48 kinds; C series20 - 2 TPI, 25 kinds
	Module threads	πmm	0.5 - 112 π mm, 42 kinds; C series0.5 - 7 π mm, 18 kinds
	Diametric pitch threads	t.p.i.π	56 - 1/4 DP, 45 kinds; C series 56 - 4 DP, 24 kinds
Other	Cooling pump motor power	kW	0.12
	Length	mm	2362/3132/3632/4632			3565/4565
	Width	mm	975			1340
	Height	mm	1270		1450	1490
	Weight	Kg	2050 2250/2450/2850	2100 2300/2500/2900	2200/2400 2600/3000	3000/3200
