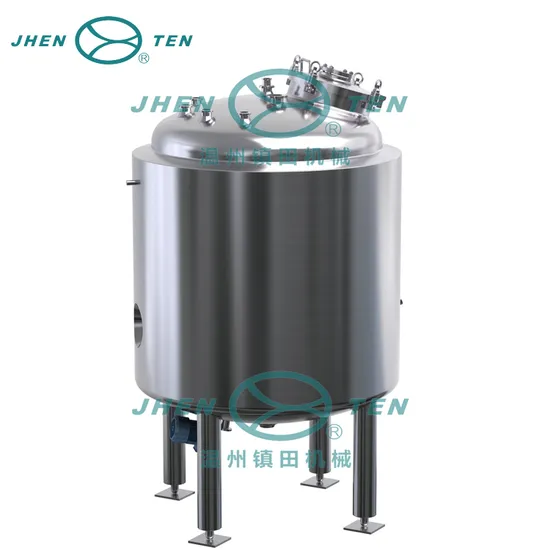

304 Stainless Steel Magnetic Agitator 500 Liter Liquid Mixing Tank Juice Mixer Machine

Product Description

Product Description
Feature
• Welding die static sealing of sleeve to replace dynamic mechanical seal completely solve the problem of dynamic mechanical seal leakage, so there is no leakage, no external pollution, safety and simple structure, easy disassembly, easy to clean, no dead corner.
• Even there is little material left to process, the stirring device at the bottom still works well. Mixing blade design is unique, and appropriate mixing work speed of 20 r/min to 400 r/min can adapt to all kinds of different material mixing.
• Stirring speed is adjusted by frequency converter to meet the requirements of the various process of stirring speed.
• Volume 50L-20000L, and other specifications, according to the actual needs of customers.
Tank Optional Configuration
• Magnetic agitator mixing tank can configure aseptic air filter. thermometer (Digital display or Dial type), PH meter, pressure gauge, steam sterilization hole, sight glasses, sanitary manhole, liquid in-outlet, CIP cleaning ball, liquidometer and Liquid level control system (Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can be configured as customers' requirement.
Application
• Can be used as storage Tank, mixing tank. temporary Storage Tank, mixing tank, etc, Used in liquid materials mixing and storage such as food, dairy products, fruit juice beverage, pharmaceutical, chemical, biological engineering and semiconductor electronics

Design Parameter
Design pressure	(-0.MPa~10MPa)
	(ATM-0.6MPa)
Design temperature	(0ºC~160ºC)
Material
Liner	304, 316L
Jacket	304
Insulation	Rockwool or polyurethane
Legs	304
Connection
In-outlet	Tri-clamp, Flange
Surface Finish
Finish type	Mechanical / electrolytic polishing, sand blasting, pickling
Polishing precision	Inner surface Ra≤0.4um
	Outside surface Ra≤0.6um

Normal Model And Main Technical Parameters

Model		JTRCL-100	JTRCL-150	JTRCL-300	JTRCL-500	JTRCL-800	JTRCL-1000	JTRCL-1500	JTRCL-2000
Effective volume(L)		100	150	300	500	800	1000	1500	2000
Tank	Diameter(mm)	Φ500	Φ550	Φ750	Φ900	Φ1000	Φ1100	Φ1300	Φ1300
	Height(mm)	500	650	700	650	1000	1000	1000	1500
Mixng	Power (KW)	0.25	0.25	0.37	0.75	1.1	1.5	2.2	2.2
	RPM(r/min)	20-400 (Can adjust the design according to the customer's usage)

The above-mentioned data is the standard. it can customize according to customers requirements
