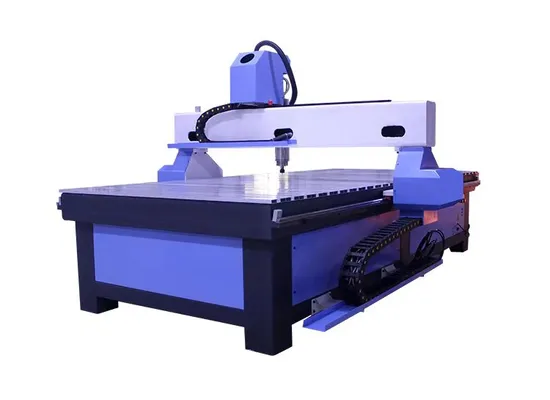

Atc 3D Wood Carving 1325 3 Axis CNC Router for Furniture Wood Door Making Advertising Woodworking Acrylic CNC Cutting Machine Aluminum Metal Engraving Machine

Product Description

Product Parameters

Woking area	600*900*200mm or 600*900*500mm
Table style	Aluminum T-slot table with PVC
Table surface	Welded steel tube,cast iron vertical shafts and steel gantry
Spindle	3.0KW water cooling spindle
Spindle rotating speed	0-24000rpm
Collect size	ER20
Guide rail	Taiwan Hiwin linear square guide rail
Driving method	X,Y axis by helicia gear rack,Z axis by TBI ball screw
Motors and drivers	Stepper motor 450B and leadshine drivers MA860H
Control system	NCstudio control system
Invert	Fuling invert
Max.working speed	12m/min
Instruction formate	G code*.u00*.mmg*.plt
Woking voltage	AC220V/AC380V,single phase/3 phsae,50-60Hz
Standard software	Artcam 2010
Compatible software	Type3
Control Cabinet	Independent
Other	Tool sensor;Oiling system;Water pump;Tool Box,English manuals etc.
Optional parts	1)4.5kw water cooling spindle; 2)Rotary axis(80mm//100mm/150mm) diameter; 3)Mach3/DSP control system; 4)Dust collector; 5)Vacuum table with 5.5kw vacuum pump.

This versatile machine can be meticulously customized to meet every unique requirement of our valued customers, ensuring it perfectly fits your specific needs and enhances your productivity.
Product Description
The Wayne CNC router machine exemplifies cutting-edge intelligent cutting and milling technology. Engineered to fulfill a spectrum of intricate processing demands, it boasts extraordinary versatility with capabilities in routing, drilling, cutting, sawing, slotting, and more. This machine features a carousel tool magazine, strategically positioned near the spindle or on the fuselage's side. With its automatic tool-changing capability, it effortlessly transitions between multiple tools, executing a multitude of complex tasks in a single operation. Whether cutting, engraving, drilling, routing, grooving, or pocketing, this CNC router excels across a variety of materials including wood, MDF, acrylic, PVC, plastic, foam, and others.
The Wayne CNC router machine is the premier choice for high-volume production enterprises. Unlike traditional manual tool change methods, this advanced wood CNC machine is equipped with an independent tool magazine featuring diverse tool bits. It seamlessly switches between tools via computer program control, maintaining uninterrupted workflow during processing.
1. Wood Processing: Expertly handles the crafting of various furniture pieces such as doors, windows, cabinets, screens, and more. 2. Advertisement: Precision engraving and cutting for a variety of labels and number plates.
3. Art Crafts: Masterfully engraves characters in any language and intricate graphics on gifts and souvenirs.
Main Feature
1. Z-axis feeding height of 200mm, offering substantial vertical flexibility. 2. Robust square tube welded steel frame structure with an 8mm thickness, ensuring unparalleled stability.
3. Comes with an Aluminum T-slot table or an optional Vacuum table paired with a 5.5kw Vacuum pump, catering to diverse working preferences.
4. X-axis rack and pinion drive, Y-axis two-way rack and pinion drive, and Z-axis 2510 Ball screw, providing precision and efficiency.
5. High-quality Taiwan square rails PMI on X, Y, Z axes for smooth, reliable motion.
6. Equipped with a powerful 450B stepper motor and MA860H Leadshine driver or an optional servo motor and driver, tailored to your needs.
7. Features a robust 3.0KW water cooling spindle and 3.7kw Fuling inverter, with additional spindle options available.
8. Integrated Nc-Studio-5.4.49 control system, with DSP or Mach 3 available as alternatives.
Options
1) 4.5kw water cooling spindle for enhanced performance.
2) Rotary axis with options for 80mm, 100mm, or 150mm diameter, accommodating various project needs.
3) Mach3/DSP control system for customizable operation.
4) Efficient dust collector to maintain a clean working environment.
5) Vacuum table alongside a 5.5kw vacuum pump for superior material stability during operation.
Detailed Photos
Packaging & Shipping
Company Profile Liaocheng Wayne New Materials Co., Ltd. stands as a beacon of excellence in the realm of CNC Router and Laser Engraving & Cutting Machines. Nestled in the heart of Liaocheng city, Shandong, we are renowned for our diverse and high-tech product line. Our flagship products include the robust Large-scale ATC Woodworking Router Machine, the precision-built 5-axis CNC Router Machine, and versatile machines such as the CNC Advertising Router Machine, CNC Marble Engraving Machine, CNC Plasma Cutting Machine, CNC Metal Mold Machine, CNC Lathe Machine, Swiss Type Lathe Machine, Fiber Laser Cutting Machine, CO2 Laser Cutting & Engraving Machine, Laser Marking Machine, and Laser Welding Machine among others. Leveraging cutting-edge technology and superior quality, we aspire to build the world-class 'Wayne' brand. Our machines have reached over 100 countries and regions, including the United States, Germany, Indonesia, Canada, Australia, Russia, and Southeast Asia.
Our primary aim is to deliver unparalleled service to our esteemed customers. Whether it's stock or custom configurations, we specialize in providing tailored solutions. Our machines feature components sourced from top-tier, innovative suppliers in machine control, ensuring premium quality and performance. Utilized in a multitude of industries such as woodworking, metal and stonework, aluminum fabrication, boat building, shop fitting, and mold making, our machines are indispensable to crafts and arts businesses globally. Supported by a dedicated and highly skilled after-sales service department, a proficient sales team, and rigorous quality assurance protocols, we guarantee a purchase experience marked by confidence and satisfaction. We warmly welcome customers and potential business associates from across the globe to collaborate for mutual growth and success. With a commitment to offering the best service, quality, and price, 'Wayne' is your ideal choice. We eagerly look forward to partnering with you to create greater value. Awaiting your inquiries, let's connect and start a fruitful conversation.
FAQ 1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer with Laser machine and CNC lathe machine
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB Qingdao.
5. What's your payment term?
A: T/T OR L/C at sight.
