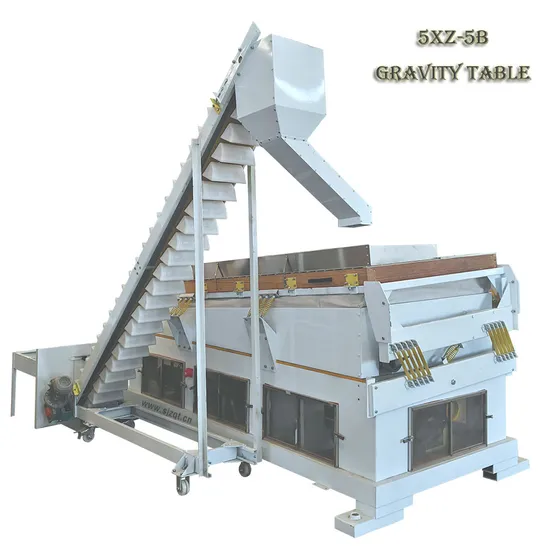

5xz-5b Seed Density Sorter Grains Gravity Separating Machine

Product Description

Product Description
Gravity table are capable of separating dry granular particles of uniform size which differ in specific gravity. They are employed throughout the seed industry to remove light undesirable seed from a wide variety of seed crops. Proper use of a Sanli Gravity Separator will improve the overall quality of any seed lot.
The 5XZ Series gravity seed separator is suitable for sunflower seed, coffee, peanuts, corn, peas, paddy, wheat, sesame and other grains.
What's this machine can do?
It can effectively remove impurities with light bulk density. Like moth eaten, mildew, pathological changes,underdeveloped, poor grain and other bad seeds.Also some straw objects.
Detailed Photos
Product Parameters

Model		5XZ-5A	5XZ-5B
Max-feeding Capacity	Wheat seed	4000-5000 Kg/h	4000-6000 Kg/h
	Maize	3500-4500 Kg/h	3500-5500 Kg/h
	Bean &Peas	3000-4000 Kg/h	3000-5000 Kg/h
	Rice seed	2400-3000 Kg/h	2400-3500 Kg/h
	Sunflower seed	1000-1500 Kg/h	1000-2000 Kg/h
Overall Size (L×W×H)		3870×1720×1700mm	3870×1845×1700mm
Screen size		3150×1380 mm
Weight		1390 Kg	1420 Kg
Power supply		380V / 50Hz / 3-Phase
Total power		9.0 kW	9.2 kW
Selection rate		≥98%	≥98%
Side opening		Without	with
Remarks		Can with Cyclone duster

Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product. Optional combination methods.

Differences in model structure
Model	Screen size	Side open	Air chambers
5XZ-5A	3150×1380mm	\\	7
5XZ-5B	3150×1380mm	√	7
5XZ-8	3580×1380mm	√	8
5XZ-10	3580×1520mm	√	8

FAQ
Q1: What is seed cleaning?
Ans: This is the process of removal of any foreign material or low quality, infected seeds and different crop varieties. Seed cleaning is that segment of the seed industry responsible for upgrading seed & improving planting condition of seed .This help in increasing the quality of the seeds hence ensuring increase in Farm productivity.
Q2: When should seed cleaning be carried out?
Ans: Seeds should be cleaned immediately after harvest. If the seeds are very moist and cleaning is done by machines, it may be necessary to dry the seeds within 12 - 16% moisture content before cleaning to prevent damage.
Q3: How should cleaning be done?
Ans:Cleaning should be done in a way that causes the least damage to the seed and does not waste good seeds.
Q4: Is seed cleaning something I can do myself to reduce costs?
Ans: Professional seed cleaning represents a small percentage of the final cost of finished goods. We see great value in the services we offer and hope to have an opportunity to work with you.
Q5: Can One Machines work on different seeds?
Ans:We also use individualized, seed specific settings on our machines to limit unwanted scarification. We provide number screens to be fitted on single machinery to our work on different variety of seeds
Q6: How quickly can you turn-around my order?
Ans: It depends on whether you have order single machin or complete plant, but generally speaking it takes only three week time after the receipt of order.
Q7: Capacity mentioned on the machines are input or output capacity?
Ans: Capacity mentioned on the machinery is the total amount of seed/grain machines it can handle per hour and in other words it is input capacity.
