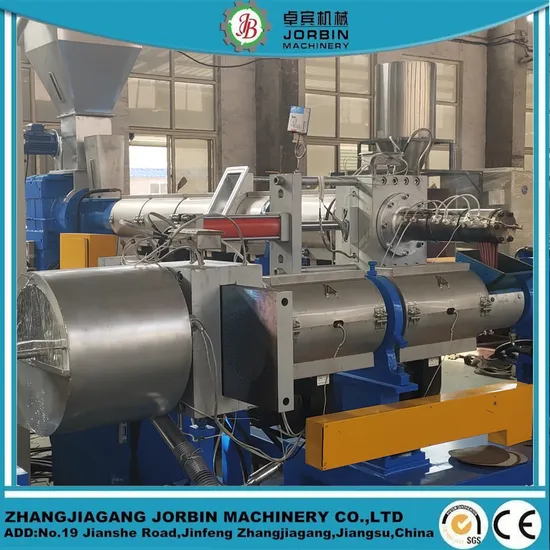

High-Efficiency Two Stage Plastic Pelletizing Machine for Waste

Product Description

Plastic PE recycling machinery line, pelletizing machine granulating machine,Water-ring hot die LDPE film granulation machine HDPE film pelletizing machinery with vertical water-ring hot die face pelletizing way. It also can do with horizontal water-ring hot die face pelletizing way and wind cooling die face pelletizing way to meet the requirement of different material.
Working Principle First by the high speed mixer, you can mix all material equally accroding to its different percentage. Then we send the mixing material into hopper by screw charger, our hopper is special desinged, so the material in the hopper won't getogether. Different material with different screw design to meeting the feature of material.
Feature 1. Highly efficent: the machine is automatic and with less power consumption.
2. Special screw design: We will design the screw up to customer different material and the material of screw and barrel can be 38CrMoAL or bimetallic.
3. no air in the pellets.
4. The machine wih long life.
Line Components

Item NO.	Item name	Quantity	Power
1	SJ00/28 Single screw extruder	1set	55kW
2	Three Feeders	1 set	1.5
3	Hot cutter mould	1set	--
4	Wind-cooling rubs surface hot cutter	1set	1.1kW
5	The first wind transmission system	1set	3kW
6	cyclone separator	1set	--
7	Wind-cooling vibrator	1set	0.8+1.2kW
8	The second wind transmission system	1set	3kW
9	Silo	1set	--
10	Electric control cabinet	1set	--

More Machine Photoes
Feeder(send the material into the feeder)
Extruder Machine
Gear box:high torque,low noise,external connect with cooling recycling system; Hard teeth face reducer
Screw: 38CrMoA1A,Nitrogen treatment;
Barrel: 38CrMoAlA,nitrogen treatment,barrel wind-cooling; temperature controller
Drive power:AC motor(160kW);
Screw diameter:150mm; speed of the screw:10-150rpm
L/D:28 :1;
Lubrication:forces lubricating;
Horizontal water-ring cutting
Centrifugal Drier
If you need more details of this kind of machine kindly contact me, I can send you more detail photoes and vedios.
1. We supply below necessary documents with the machine:
Machine layout Electricity diagram Machine certificate General manual book/maintenance book 2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.
3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.
4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.
