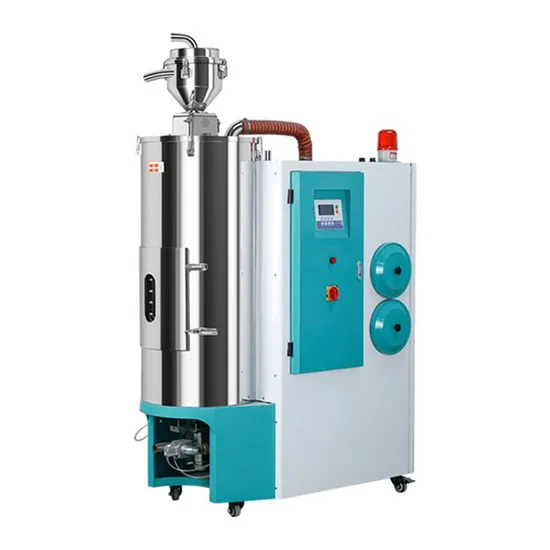

Desiccant Honeycomb Dehumidifier Dryer 3 in 1 Compact for Plastic Resin

Product Description

Product Overview
Two-ln-One Dryers
Drying: based on the principle of water high temperature gasification, moisture of material wouldbe blown away by high pressure air from blower ter being high temperature gasified. A part of airwith moisture discharges through filter of moisture outlet; most part of air are recyclable afterbeing filtered through return air pipe.Conveying: suction force of high pressure blower makes avacuum inside hopper also produces differential pressure between hopper and outer space. Withthe common force of differential pressure and continuous suction, materials and air mixture wilbe sucked into hopper. Due to the filter block of hopper, materials will be ccumulated in hopperand the air is expelled from air outlet. Double-stage conveying is mainly accomplished by shiftingthree way valve of suction machine to control suction return circuit. Heatless regeneration; Thecompressed air after passing through inlet filter 11 enters into dry barrel 1 (or dried barrels 2)through pneumatic control valve 1. Then it make absorption dry with desiccant bed layer, andater exist from non-return valve 9 (or 10) , finally exist from the outlet to dry and purify air. A pariof dry air (about 15%) enters dry barrel 2 (or dried barrel 1) through current limitation pipe 8 toblow and regenerate desiccants with saturated water, then air passes through pneumatic controlvalves 1 to exist out of muffler 7. Drying barrel1 , 2 work alternately to regenerate.
FEATURES AT A GLANCE 1.MVL-U integrates autoloading and drying into one unit. 2.Adopts microprocessor and P.l.D controlsystem to accuratelycontroldrying temperature.

3.Hopper are made of stainless steelto eliminate materialcontamination.

4.Full functionalalarming system can immediately show faults.

loader for optional

Drying system control

Hopper inside image

PRODUCT SPECIFICATIONS

Model	25KG	50KG	75KG	100KG	150KG	200KG	300KG	400KG
Hooper capacity(kg)	25	50	75	100	150	200	300	400
Drying blower(kw)	0.37	0.37	0.55	0.55	0.75	1.1	1.5	2.2
Feeding blower(kw)	1.1	1.1	1.1	1.5	1.5	1.5	1.5	2.2
Drying heater(kw)	2.7	4	4	6	7	10	15	18
Suction pipe(inch)	1.5
Dehumidifying air volume(m³/h)	50	80	80	100	150	200	300	400
Dimension(cm)	65*115*140	65*115*152	65*115*162	73*133*162	73*133*198	84*143*240	90*163*220	90*163*246

PRODUCT CONFIGURATION

Touch screen (Adopt PLC control with LCD)

Dew-pointmonitor

XCD-OP High-effect filter(HEPA)

Successful Project

Medical supplies

Air conditioning electrical appliance

Car interior

SIMILAR PRODUCTS

FAQ
Q1: Are you manufacture or trading company?
Manufacture, based in famous city---Dongguan.
Q2: What products do you have?
All series of plastic auxiliary equipment for injection molding including plastic granulator,dehumidifier dryer,hopper dryer, volumetric doser, hopper loader and we providing design and building raw material feeding system for injection or extruding molding industries.
Q3: What are your company advantages compare to other competitor?
Firstly, we are real manufacture of the equipment, we can ensure the quality and delivery time for your order, secondly, all the accessories are produced by ourselves, you can buy them without expensive.
Q4: Which countries were exported?
The United States,Europe, South Korea, Japan, the Middle East,Mexico, Vietnam, Singapore, Malaysia and other countries.
Q5: How long is your guarantee for machine?
Our products are guaranteed with1 year, can placement for the accessory if damaged in the period.
Q6: Do you have any guide manual?
Sure,we have guide manual and video for each product.
