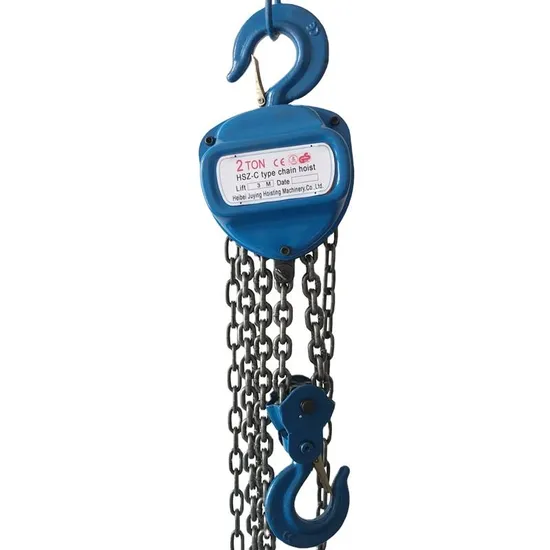

Super Demand Is Straight out of China Factory Hsz Type Chain Hoist

Product Description

Model	HSC-1	HSC-2	HSC-3	HSC-5	HSC-10	HSC-20
Capacity	1 ton	2 ton	3 ton	5 ton	10 ton	20 ton
Lift height	2.5 m	2.5 m	3 m	3 m	3 m	3 m
Falls load chain	Single	Double	Double	Double	Four	Eight
Diameter load chain	6mm	6mm	8mm	10mm	10mm	10mm
G.Weight	10kg	14kg	24kg	35kg	72kg	165kg

Product Description
Specification

Model	HSZ-1	HSZ-2	HSZ-3	HSZ-5	HSZ-10
Capacity	1 ton	2 ton	3 ton	5 ton	10 ton
Standard height	3 m	3m	3m	3m	3m
Chain diameter	6mm	6mm	8mm	10mm	10mm
Falls of load chain	Single	Double	Double	Double	Four
Weight	9kg	11kg	19kg	32kg	73kg

Real Show
Packing & Delivery
Company Profile
Hebei Juying Hoisting Machiney Co.,Ltd was founded in 2005, and mainly produce chain hoist, electric hoist, mini electric hoist, lifting chain, lifting sling, lifting machinery equipment. The company has a complete and scientific quality management system. Relately it has been vertified by TÜV Rheinland.
What is a Chain Block? A Chain Block (also known as a hand chain hoist) is a mechanism used to lift and lower heavy loads using a chain. Chain blocks contain two wheels which the chain is wound around. When the chain is pulled, it winds around the wheels and begins to lift the item that is attached to the rope or chain via a hook. Chain Blocks can also be attached to lifting slings or chain bags to lift the load more evenly.
How Does a Chain Block Work? A Chain Block contains a lifting chain, a hand chain and a grabbing hook. Most chain blocks are operated using electricity, but manual chain blocks can be used too. First, the chain block needs to be connected to the load via the grabbing hook. Then when the hand chain is pulled, the chain tightens its grip on the wheel and forms a loop inside the mechanism causing a tension which lifts the load from the ground.
What is a Chain Block used for? Due to its lifting capabilities, Chain Blocks are commonly used in garages where they are able to remove engines from cars easily. Because they can be operated by one person, Chain Blocks are a wonderfully efficient way to complete jobs which may have taken more than two workers to do.
