Stainless Steel Sanitary Quick Connect Pipeline High Speed Mixer with Platform

Product Description

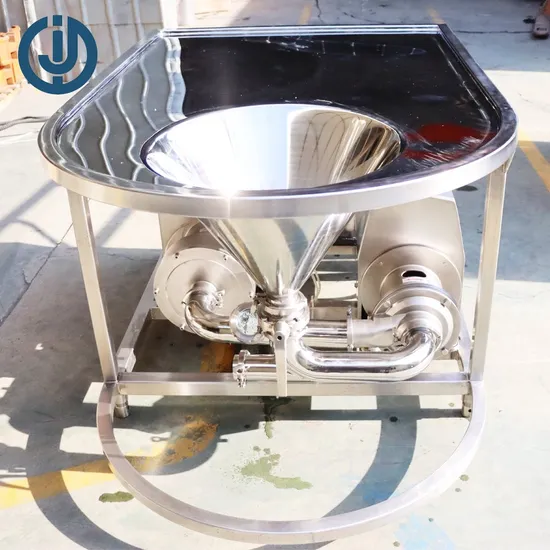

Stainless steel Sanitary Quick Connect Pipeline high speed mixer With platform
Design Concept:
Pipeline high shear dispersing emulsifier is a high performance equipment used for continuous production or circulated treatment of fine material. Working Principle: There are three 1-3 sets of paired and clutched stators and rotors.Driven by motor, the rotor revolve quickly and produces a strong axial suction force which intakes the material to the chamber.The machine disperses, shears and elmusifies the material to the chamber. Advantages: - Large capacity, suitable for continuous on-line production in industry-Narrow particle size distribution and high uniformity- Save time, energy and efficiency-Low noise and smooth operation-Eliminate quality differences between batch-to-batch productions-No dead ends, 100% of the material is sheared by dispersion-Simple operation and easy maintenance
Features:
Motor: 0.55-22Kw
Impeller: Open type
Rotating speed: 2900rpm(50Hz)or 3600rpm(60Hz)
Flow: 1.5-120/h
Lift: 0-75m
MAX pressure: 7Bar
MAX temperature: 120degree
Connection: Clamp, Thread, Flange, Welding
Standard: DIN, SMS, 3A, ISO, IDF, RJT
We have open impeller and close impeller types. And according to customers' requirements, we design movable type and explosion type.
Design and Standard:
Design based on 3A hygienic standard
Adjustable stainless steel leg
Motor housing: Cold rolled stainless steel plate
Investment casting impeller: AISI 304/316L
Contact parts with material: Viton, EPDM
Gasket: SSC-Sic/EPDM
Internal surface: Ra≤ 0.8um
External surface: Mirror polish
Application:
Fine chemical, petroleum chemical,bio-pharmacy,coating and oil inks,pesticides, food industry. Quality guarantee of 3 years ISO 9001, FDA, SGS approved materials 7-10 days fast delivery on urgent requirements 10 years' Rich exporting experience to make you easy and happy with custom work We also supply sanitary butterfly valve, sanitary flow diversion valve, sanitary CPM valve, sanitary regulating control valve, sanitary diaphragm valve, sanitary ball valve, sanitary sampling valve, sanitary safety valve, sanitary pressure reducing valve sanitary elbow, sanitary tee, sanitary reducers, sanitary unions, sanitary clamp, sanitary ferrule, sanitary pipe clamps,sanitary cleaning ball, sanitary sight glass, sanitary manway manhole cover, sanitary strainer, filters, and other sanitary pipe fittings.... Welcome to check our other products.
ABOUT OUR COMPANY

JoNeng valves company was started in 2007. Located in the stainless steel industry zone, Wenzhou, China.

Totally 130nos of workers and the factory Covers 5000m2. Till now, we have 34 sets of LG Mazak machines and other local CNC machines; Plus, we have 2 sets of automatic machining unit. To assure better quality, we have the full inspecting quality control equipment: 1nos Ra roughness instrument, 3nos stainless steel spectrometer, numbers of roundness instrument, numbers of thickness instrument, numbers of radius instrument, 3 nos pressure testing center.

JoNeng valves provides the following sanitary flow control components: Stainless steel sanitary valve ( stainless steel sanitary butterfly valve, sanitary diaphragm valve, sanitary check valve, sanitary ball valve, sanitary CPM valve, ...) stainless steel sanitary pipe fittings( stainless steel sanitary elbow, tee, clamp, ferrule, union, cleaning ball, sight glass, filter...) Stainless steel Sanitary pump ( stainless steel sanitary centrifugal pump, rotary lobe pump, CIP pump)

JoNeng services for food, beverage, dairy, chemical, bioth, pharmaceutical, and etc industries.

JoNeng customers are from 55 different countries.After so many years, JoNeng know more about different requirements from different countries' customers. JoNeng valves believes in "What we say, what we do". We always believe honesty and responsibility is the only way leading to long term business relationship. Trying our best for customers and put ourselves into customers' shoes. Our commitment " Never let customers leave us because our poor quality". Making business with us, making friends with us.

OUR PRODUCTION CAPACITY

Production Lines	Stainless steel sanitary pipe fittings' line, machining line, sanitary manhole line,
Product Range	sanitary butterfly Valve, sanitary diaphragm valve, sanitary pipe fittings, union, ferrule, sight glass, manhole cover, safety valve, sampling valve....
Year Established	2007
Factory Size in Square Meters	5000M2
NO. OF TOTAL STAFF	130
Production Capital	8 000 000 USD
Detail capacity	Manhole covers	12000nos
	Pipe fittings	150000nos
	Ferrules, unions, connectors	200000nos
	Diaphragm valves	15000nos
	Butterfly valves	20000nos
Investment in Manufacturing Equipment	750000usd
Details of equipment	For machining parts 29 nos of LG Mazak CNC Machines 4 nos of local CNC machines 2 nos of automatic CNC center 12 nos of plain lathe For pipe fittings 4 nos of press 3 nos of cutting machine 3 nos of chamfering machine We also have the following quipments 4 nos of polishing machine 12 nos of grinding machine 3 nos of laser marking machine 3 nos of pressure testing machine 1 nos of temperature testing machine 3 nos of spectro instrument 1 nos of surface roughness device
Primary Competitive Advantages	Strict inspection , honest business way, fast revert on order problem
Stocked materials	Big quantity for raw forging of butterfly valve, diaphragm valve, ferrule, union, adapters, pipe fittings, clamps, sight glass, safety valve, manhole cover,
OEM Services Provided	yes
Design Service Offered	yes
Sales Volume	6 000 000 usd
Export Percentage	80%
MAIN MARKET	USA, Germany, Hungary, Canada, Thailand, Holland, England, South Africa,Indonesia, Saudi, India, New Zealand, Australia, Middle East...
Own Brand Name	JoNeng

OUR STOCK
OUR INSPECTION

HOW DO WE MAKE THE QUALITY CONTROL
For Raw Materials	1. Material control from raw materials. For raw material checking, we check 100% by chemical liquid. Any property mistakes would be rejected. 2. Sand hole inspection after raw materials are machining before polishing. 3. Carbon component report can be provided if needed 4. Mechanics test report can be provided if needed
For New products	5. 2nos of new samples to be checked against technical drawing. Testing report is provided to customers before bulk production.
For finished materials	6. For valves, pressure testing and temperature testing is required for each valve. 7. After we get the finished products, we check for surface roughness, thickness equality, roundness, size measurement and sand holes again. 8. For all finished products, the checking quantity is not less than 10% of total quantity. 9. Before shipment, we check for the quantity of each product in order to find out any missing quantity or wrong product.

OUR EXHIBITION
FAQ:
1. Are you a trading company or factory?
We are a manufacturer factory and we also have our own exporting license.
2. Do you have certificate ?
Yes, ISO, FDA, LFGB, CE, PED certificate . We also have some patents in design.
3. How do you control the quality?
In quality control ,the most important is to avoid material mixing .
In our factory , 3 spectro PMI machines are used in raw material warehouse, production plant, dispatch plant.
Pressure inspecting machine, PMI machines, RA roughness spector, hardness testing machine..... all machines help in inspection.
2 staff inspect during production in different sections
5 staff inspect the finished productions to avoid shortage, poor quality, mixing chemical....
4. If there is any quality problem, how do you solve it?
We are very proud that we never make one customer leave us. We are not 100% perfect, there is some quality problem.
Normally replacement, or compensation, or resend goods to customers as per the condition. To be discussed as per condition.
5. How long is your delivery time?
For normal products in 7-10 days; for bulk order, in 15-25 days. It depends.
6. Warranty time?
3 years warranty for all of our stainless steel products. Gaskets or the easy broken parts are not included due to the different application for customers.
7. Why trust in us ?
14 years in this industry . It makes us professional .Good credit in this market.
All of our machines are the assurance of our responsibility.
8. Free sample ?
Free samples can be provided for first cooperation under sincere cooperation.
9. What is the MOQ?
1pcs MOQ is welcome for starting cooperatoon
10.Material certificate ?
Material certificaite, mill certificate, pressure testing certificate, roughness certificate, measure certificate, RT certificate,... can be available, please declare when inquiry us.
11. More questions are appreciated.
