High Precision 5 Axis CNC Milling Machine for Metal Processing

Product Description

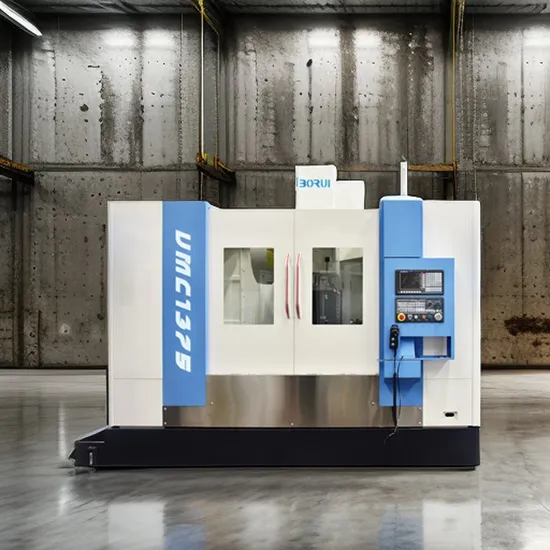

Vmc1375 High Speed Vmc Machine CNC Machining Center Metal CNC 4 Axis Milling Machine

Product Description
Main Features of CNC Vertical Machining Center:1. Rigid base with integral structure adopted2. Good durability with cast iron machine bed made through super audio quenching3. Good dynamic performance with advanced guide rail laminating technology4. High precision, high-rigidity spindle, high speed5. Sufficient precise lubrication with automatic lubrication system6. Row knife structure which can change knifes very fast, high positioning accuracy and simple maintenance7. Wide range of machining products due to the travel distance of X direction is up to 1600mm and variety of knife tools can be installed on the machine tool8. Spring chuck with high accuracy and high efficiency9. Good protection function with fully-closed safe glass window10. Modular design and optional accessories available on customer's needs Product Parameters
Product main technical parameters:

Type	Unit	VMC1375
Processing
X axis travel	mm	1300
Y axis travel	mm	750
Z axis travel	mm	600
Spindle nose to table surface	mm	120-720(BT40)
Spindle center to Column surface	mm	797
Worktable Size
Worktable Size(X-axis direction)	mm	1400
Worktable Size(Y-axis direction)	mm	700
T slot qty-width*distance	mm	18x7x100
Spindle specification
Spindle speed(Belt type)	rpm	8000
Main motor power	kW	11
Spindle taper		BT40
Feeding system
X/Y/Z axis rapid feed	m/min	36/36/36
Cutting rapid feed	mm/min	1-10000
Three-axis servo motor power	kW	3 X 3 X 3
Tool library system(OPT)
Tools capacity	pcs	href="javascript:;" Disc Type 24
Machine size
Machine length	mm	3315
Machine width	mm	2430
Machine high	mm	2400
Machine weigth	kg	6650

Detailed Photos


Company Profile

FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.4. What is your trade terms?A : FOB, CFR and CIF all acceptable.5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .6: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )
