Automatic Carpet Bale Opener Fiber Opening Machine with CE Good Price

Automatic Carpet Bale Opener Fiber Opening Machine with CE Good Price

US$28,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YYKB-IV-160
Customized
Customized
Condition
New
Working Width
1600mm
Capacity
400kg/H
Weighing System
Electronic Weighing Pan
Control Method
PLC Frequency Controlled
Consumption
Low
Security
High Security
Automatic
High Automatic
Transport Package
Wooden Pallet
Specification
160
Trademark
YINGYANG
Origin
China
HS Code
844900
Production Capacity
300sets/Year

Product Description

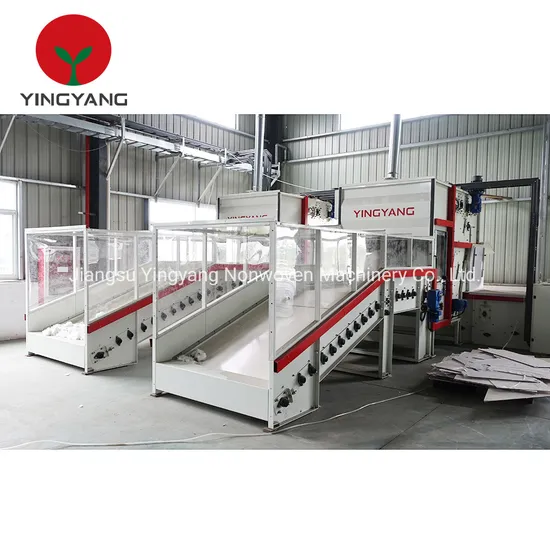

Automatic Carpet bale opener fiber opening Machine with CE Good Price Product Description
The machine is used to pre-open baled fiber and prepare the fiber to the next working procedure according to a certainty percentage. And electronic weighing system controls the amount of fiber per dump and in combination with other bale opener units, a number of fiber types can be blended together.
Technical data: working width :1600mm
Weighing system: electronic weigh pan
Control method: PLC frequency controlled
Production capacity:400kg/h based on 6D PET fiber Q235-A steel plates with 8mm thick are cut and welded by computer for machine frame. The spiked lattice is made of high quality engineering plastic with canvas interlining and surrounded with angle steel for supporting. Conveying lattice is made of two sub-section PVC lattices in high and low dislocation arrangement. With hydraulic bales feeding system. The diameter of the fiber average roller and fiber stripping roller are 480mm including the height of the spikes and there are 3 rows in total. Lighter beater and the distance between beater and spiked lattice can be automatically adjusted by linear actuator. Feeding is controlled by photo electric automatically and the Spike lattice is controlled by separate inverter to control the feeding amount. Larger hopper is made from Aluminum alloy, controlled by air cylinders in the middle. Auto exhaust-driven hoppers. Fiber dropping cannot be affected by airflow. It measures by accurately load cells. Cable tray are designed and fixed on the machine.
Main products
Main production line
Geotextile production line Acoustic fiber board production line Automotive interior nonwoven production line Synthetic leather substrate production line
Thermal bonded wadding production line Through -air bonded nonwoven production line Spun-bonded nonwoven production line Spun-laced nonwoven production line
Filter felt production line Needle punched wipe production line Scrubbing pad nonwoven production line Comforter filling production line
Airlay felt nonwoven production line Glass fiber production line Jute felt needle punched production line Geo-synthetic clay liners lamination production line
