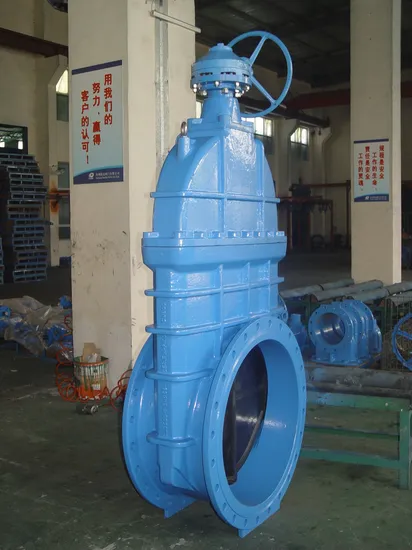

Double Flange Resilient Seated Gate Valve with Gearbox

Product Description

Product DescriptionBS5163 Ductile Iron Cast Iron Non-Rising Stem Resilient Seated Double Flange Gate Valve with Gearbox
1.Material list and Application:1. Material :

Body	Ductile Iron
Handwheel	Ductile Iron
Bonnet	Ductile Iron
Wedge	QT500-7 GGG50 with NBR,EPDM OR FPM coating
Stem	Stainless steel
stem nut	Brass
Middle Flange Washer	NBR/EPDM/FPM
O-Ring	NBR/EPDM/FPM
Support ring	ABS+EPDM

2.Related Standard:

Design Standard:	BS EN1171/CJ/T216 According requirements of customer(s)
Socket ends:	Fitted with NBR/EPDM
Face to face dim	EN558-1/BS5163/GB12221
Inspection & testing:	BS EN 12266-1,EN1074-2,GB13927
Operator	Handwheel,Gearbox,,Thimble,Electric Actuator,Pneumatic
DN	350-600
PN	1.0/1.6/2.5 Mpa
Working temp.	NBR≤80ºC/EPDM≤120ºC
Coating	Fusion-bonded epoxy 200-250 microns inside and out side

2.Application
The application range of the soft seal bypass gate valve is very wide. It is mainly used in the control of medium and low pressure oil, gas and water systems. The soft seal bypass gate valve can be used for open and close control, bypass control and pressure balancing. It is also suitable for controlling liquids with high viscosity and small flow rate. The soft seal bypass gate valve can be used in various fluid control systems, such as oil control system, gas control system, water control system, and so on.

Qualification certificate:
Company Patents and Honor Wall:Product Parameters
Our Factory:

FAQ
1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. Which price terms could accepted?
A: FOB,CIF all acceptable.
