The original factory of the United States Shengbai pneumatic diaphragm pump SANDPIPER diaphragm pump

Product Details

Product Description

Product Description
SandPIPER is the brand of WARREN RUPP manufacturer in the United States. It IS THE FIRST PROFESSIONAL DIAPHRAGM pump manufacturer to obtain ISO9000 QUALITY certificate in the world, and the pioneer position in the world market of pneumatic double diaphragm. SandPIPER pneumatic diaphragm pump is widely used in petrochemical, water treatment, food, machinery manufacturing, shipbuilding, pharmaceutical, paint and other fields. Its characteristics are completely self-priming, no seal, dry turn variable flow and head, optional export, no motor and explosion-proof, can handle wear objects and high viscosity substances. Fully self-priming, flow adjustable, NON-destructive dry turn, a variety of outlet connection, bypass and return valve free, explosion-proof safety, no dead point guarantee. Whether dealing with low viscosity or high viscosity particle free media, it has extraordinary self-priming ability.
SandPIPER sheng hundred pneumatic diaphragm pump, the design is simple, numerous features, superior performance, no seal design, without motor, the pneumatic and seal design, without a motor, not leak, not pollute the environment, transport viscous medium, can transport high viscosity or medium containing particles, from water to almost every media such as tomato ketchup, self-priming completely, SandPIPER pump under the condition of the conventional can transfer from dry to imbibition, flow is adjustable, just need to control air, can make the pump flow from zero to maximum between arbitrary change, dry condition, compared with the traditional pump, SandPIPER pump in any idle pump body will not damage, avoid bypass and backflow, when the outlet pressure and driving pressure balance, The pump will automatically stop operation, so, as long as the outlet is closed, the pump will stop operation, no need to install expensive bypass system, safety explosion-proof, gas source for power, will not produce sparks, SandPIPER pump can be used in explosion-proof environment, no dead point guarantee, after years of practice and improvement, WARREN RUPP guarantees that all SandPIPER pneumatic double diaphragm pumps will not start poorly.
SANDPIPER pneumatic diaphragm pump has the following advantages:
Ability to strengthen acid and alkali, solvent; Can transport high viscosity, high abrasion fluid.
The flow rate can be adjusted according to the size of the outlet valve.
When the outlet is blocked or shut down, the pump will automatically stop without wasting energy
Fluid is delivered by diaphragm pressure delivery without damaging the physical and chemical properties of the fluid.
Can produce vacuum self-priming liquid, can dry turn without damage to the pump
Independent air distribution system can be maintained on the line without removing the pump body itself.
Air valve consumption is small, low resistance, only a little pressure and can start the pump
Applicable fields and fluids suitable for handling are as follows:
Chemical industry: acid, alkali, solvent, suspended matter, dispersion system;
Petrochemical industry: crude oil, heavy oil, grease, mud, sludge;
Daily chemical industry: detergent, shampoo, emulsion, emulsion, hand cream, surface activator;
Ceramics industry: mud, porcelain slurry, lime slurry, clay slurry;
Mining industry: coal slurry, magma, mud, mortar, lubricating oil;
Water treatment: lime slurry, soft sediment, sewage, chemicals, waste water;
Food industry: liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey, animal blood;
Beverage industry: yeast, syrup, concentrate, gas-liquid mixture, wine, juice, corn pulp;
Medicine: solvent, acid, alkali, plant extract, ointment, plasma and other kinds of drug liquid;
Paper industry: binder, resin, paint, ink, pigment, hydrogen peroxide;
Electronics: solvent, electroplating solution, cleaning solution, sulfuric acid, nitric acid, waste acid, corrosive acid, polishing liquid;
Textile industry: dye chemicals, resins, adhesives;
Construction industry: cement paste, ceramic tile binder, rock slurry, ceiling finish;
Automotive industry: polishing emulsion, oil, coolant, automotive primer, oil latex, varnish, additives, degreasing liquid, paint;
Furniture industry: binder, varnish, dispersion system, solvent, color agent, white wood glue, epoxy resin, starch binder;
Coating industry: colorant, solvent, resin, paint;
Metallurgical casting and dyeing industry: metal slurry, hydroxide and carbonized slurry, dust washing slurry.
SANDPIPER pneumatic diaphragm pump metal pump models and materials:

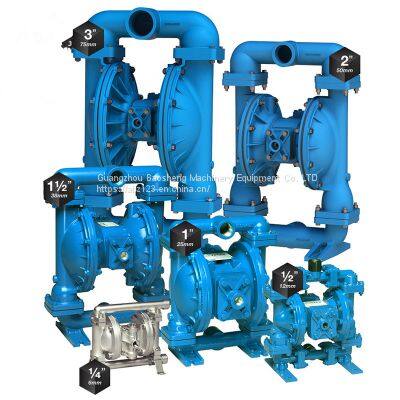

Metal pump series
1/2 "metal pump
Caliber: 15 1/2 "(thread) Flow rate: 0-57L/MIN 0-3.4m3 /H Head (height) : 0-8.6BAR 0-70 m
Model specification material scope of application
S05B1A2TABS000 aluminum alloy shell, Teflon diaphragm solvent, monomer, oil
S05B1A1WABS000 aluminum alloy housing, SP diaphragm water
S05B1ANWABS000 aluminum alloy housing, NE Neoprene diaphragm water
S05B1S1WABS000 316 stainless steel housing, SP diaphragm acid, alkali, water
S05B1SGTABS000 316 stainless steel housing, Teflon diaphragm solvent monomer, oil, acid, alkali
1 "metal pump
Caliber: 25 1 "(thread) Flow rate: 0-170L/MIN 0-10.2M3/H Head (height) : 0-8.6BAR 0-70 m
Model specification material scope of application
S1FB1AGTANS000 aluminum alloy shell, Teflon diaphragm solvent, monomer, oil
S1FB1A1WANS000 aluminum alloy housing, SP diaphragm water
S1FB1ANWABS000 aluminum alloy housing, NE Neoprene diaphragm water
S1FB1S1WABS000 316 stainless steel housing, SP diaphragm acid, alkali, water
S1FB1SGTABS000 316 stainless steel housing, Teflon diaphragm solvent, monomer, oil,
1-1/2 "metal pump
Caliber: 40 1-1/2 "(thread) Flow rate: 0-401L/MIN 0-24m3 /H Head (height) : 0-8.6BAR 0-70 m
Model specification material scope of application
S15B1AGTABS000 aluminum alloy shell, Teflon diaphragm solvent, monomer, oil
S15B1A1WABS000 aluminum alloy housing, SP diaphragm water
S15B1ANWABS000 aluminum alloy housing, NE Neoprene diaphragm water
S15B1S1WABS000 316 stainless steel housing, SP diaphragm acid, alkali, water
S15B1SGTABS000 316 stainless steel housing, Teflon diaphragm solvent, monomer, oily, acid, alkali
S15B1I1WABS000 cast iron housing, SP diaphragm water
2 "metal pump
Caliber: 50 2 "(thread) Flow rate: 0-567L/MIN 0-34m3 /H Head (height) : 0-8.6BAR 0-70 m
Model specification material scope of application
S20B1AGTABS000 aluminum alloy shell, Teflon diaphragm solvent, monomer, oil
S20B1A1EABS000 aluminum alloy housing, SP diaphragm water
S20B1ANNABS000 aluminum alloy housing, NE Neoprene diaphragm water
S20B1S1EABS000 316 stainless steel housing, SP diaphragm acid, alkali, water
S20B1SGTABS000 316 stainless steel housing, Teflon diaphragm solvent, monomer, oily, acid, alkali
S20B1I1EABS000 cast iron housing, SP diaphragm water
3 "metal pump
Caliber: 80 3 "(thread) Flow rate: 0-889L/MIN 0-53.3m3 /H Head (height) : 0-8.6BAR 0-70 m
Model specification material scope of application
S30B1AGTABS000 aluminum alloy shell, Teflon diaphragm solvent, monomer, oil
S30B1A1EABS000 aluminum alloy housing, SP diaphragm water
S30B1ANNABS000 aluminum alloy housing, NE Neoprene diaphragm water
S30B1S1EABS000 316 stainless steel housing, SP diaphragm acid, alkali, water
S30B1SGTABS000 316 stainless steel housing, Teflon diaphragm solvent, monomer, oily, acid, alkali
S30B1I1EABS000 cast iron housing, SP diaphragm water
