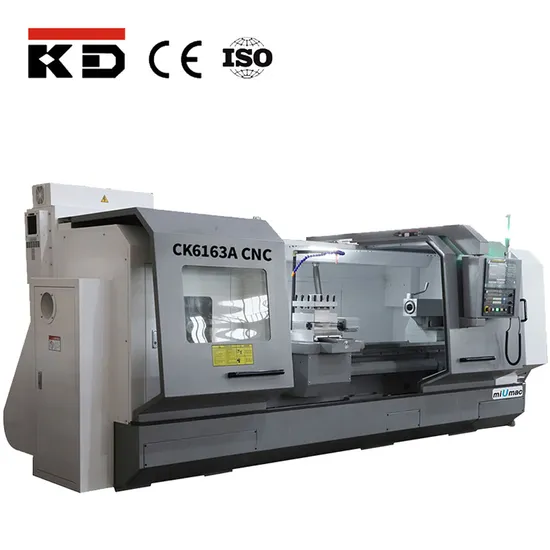

Ck6163A/1000 40-1000r/Min Spindle Speed CNC Flat Bed Lathe Machine
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CK6163A/1000
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Bed Width
630mm
Spindle Nose
104mm
Spindle Speed
40-1000r/Min
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
180sets/ Year
Product Description
CK6163A/1000 40-1000r/Min Spindle Speed CNC Flat Bed Lathe Machine PRODUCT SPECIFICATIONS| MODELS | CK6163A | CK6180A |
| CAPACITY | | |
| Max.swing over bed | Ф630mm | Ф800mm |
| Max.swing over carriage | Ф360mm | Ф500mm |
| Width of bed | 560mm | |
| Distance between centers | 1500/2000/3000 | |
| Max turning length | 1400/1850/2850mm | |
| TRAVEL | | |
| Max.cross travel(X) | 440mm | 500mm |
| Max.longitudinal travel(Z) | 1500/2000/3000mm | |
| FEED | | |
| Rapid feed for axis X | 8m/min | |
| Rapid feed for axis Z | 10m/min | |
| SPINDLE | | |
| Spindle nose | D11 | |
| Spindle bore | Ф104mm | |
| Taper bore of spindle | Metric 1:20 | |
| Steps of spindle speed (manual) | 4 | |
| Spindle speed | 40~105, 80~205, 195~500, 385~1000rpm | |
| TOOL POST | | |
| Tool post stations | 4-way | |
| Tool cross section | 40×40mm | |
| TAILSTOCK | | |
| External diameter of tailstock sleeve | Ф100mm | |
| Taper bore of tailstock sleeve | M.T.NO.6 | |
| Max travel of tailstock sleeve | 230mm | |
| OTHERS | | |
| Min. input | 0.001mm | |
| Main motor power | 11kw | |
| Coolant pump power | 370w | |
| Overall dimensions(L×W×H) | (3700/4200/5200)×1660×1820mm | |
| Net weight | 3700/4780/5280kg | |
