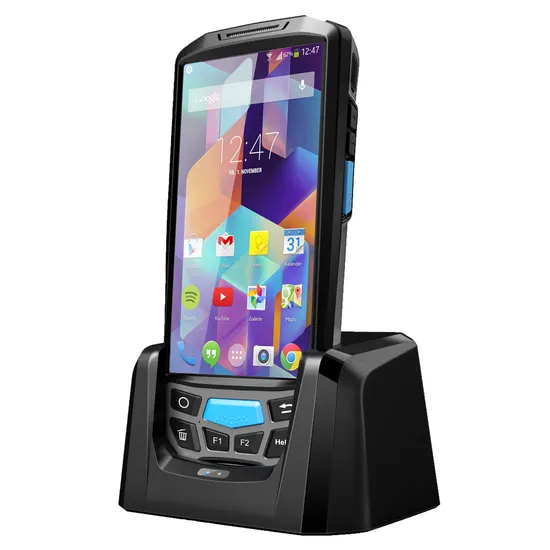

Bluetooth Android Handheld PDA Barcode Scanner with UHF NFC Reader

Product Description

Mobile Data Terminal Android Rugged Industrial PDA 1D Laser Barcode 2D qr code Scanner NFC Reader waterpoof shockproof dustproof
1) Default Configuration: 1D+2D + Wifi + BT + 4G (FDD / TDD-LTE) + Phone + GPS + 8M Camera + Google Player Store 2) UHF, NFC,LF,HID RFID are optional 3) Compact And Portable Ergonomic Design With Wrist Strap 4) Safedroid OS (Android 7.0) Highly Optimized Android Operating System. 5) 8.0M Mega Pixel Camera. 6) High Capacity 4800mAh Large Capacity Battery For Critical Requirements; 7) Pogo Pin Interface For Convenient Charging With Optional Charge Cradle. 8) Industrial Rugged Design, Water-Proof And Protection Grade (IP66); 9)About Shipment: We offer DHL shipping usually, but in emergency, we can choose another shipping option.

If you wanta buy sample for testing or questions, please contact me :

Judy

Structural Parameter
Dimensions	172mm(L) X 80mm(W) X 27mm(D)
Weight	<500g
Display Screen	5.0 inch IPS 720 * 1280 px with Multi-point touch capactive screen
Expand Port	SIM card, micro SD (TF) Card
Communication Interface	USB2.0 Device
Input Mode	Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity	Rechargeable Li-polymer Battery 3.7V 5000mAh
Frequency	8ohm 1W speaker
Key	13pcs soft silicon key
Performance Parameter
OS	Android 7.0
CPU	ARM CORTEX-A53 64bit Quad-Core 1.3G
RAM	2G RAM
Flash ROM	Standard 16G NAND Flash Storage
	micro SD/TF port (Max up to 32G)
Data Communication
WI-FI	Support IEEE802.11 a/b/G/n protocol, it need effective wireless LAN signal cover
FDD/TDD-LTE 4G	TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3)
WCDMA 3G	B1,B2,B5,B8
GSM 2G	GSM/edge/GPRS (850,900,1800,1900MHz)
bt	Support bt 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m
Standard Modules
Camera	8MP autofocus camera with flash
GPS	Support A-GPS
Operating Environment
Operating	-20°C to 50°C
Storage Temperature	-25°C to 70°C
Environment Humidity	5%RH-95%RH(no condensation)
Drop Specifications	6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications	1000 times/0.5m, roll on 6 sides contact area
Sealed Environment	IP65
1D Laser Scanner (OPTIONAL)
1D Laser Scanner	Symbol 955, HoneywellN4313,Mingde966
Resolution	4Mil minimum width
Ambient Light	10000ft.candles(107640 lux)
Scanning Speed	104(±)12/sec (bothway)
Scanning Angle	47o±35o(Standard) / 35o±3o(narrow angle)
Support Bar Code Type	UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS
2D CMOS (OPTIONAL)
CMOS Scanner	Honeywell N6603,NewLand 3096
The Sensor Resolution	752(level)×480(vertical)pels(gray level)
Ambient Light	All dark 9000ft.candles/96900 lux
focus element (VLD)	655nm ± 10nm
Support bar code type	PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
LF RFID Reader (Optional)
Frequency	125kHz, 134kHz (FDX-B / HDX)
Protocol	ISO11784/5, ISO18000-2
Range	3-8cm
HF RFID Reader (Optional)
Frequency	13.56MHz
Protocol	ISO14443A/B, ISO15693
Range	3-8cm
NFC Reader (Optional)
Frequency	13.56MHz
Protocol	ISO/IEC 18092 (ECMA 340)
Range	2-4cm
UHF RFID Reader (Optional)
Frequency (China)	865 - 868MHz / 920 - 925MHz
Frequency (America)	902 - 928MHz
Frequency (Europe)	865 - 868MHz (ETSI EN 302 208)
Frequency (Others)	Other countries for customisation
Protocol	EPC C1 GEN2 / ISO18000-6C
Antenna	Linear polarisation (1.8dBi) / Circular polarisation (2.5dBi)
Power	1W (typical 24dBm, +10dBm to +30dBm)
Range	>1.5m
Biometric Fingerprint (Optional)
Sensor	TCS2SS
Sensor type	Capacitive Sensor
Function	Enrollment, compare, deletion etc.
Resolution	508DPI
Memory	1,000 PCS fingerprints

High-speed operation performance:
With androd 7.0 operating system, matching 64 bit quad core 1.3GHz high speed processor with prefect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirement.
Excellent identification ability :
Fully support 1D and 2D barcode scanning,NFC(optional).
Convenient appearance design:
Slim and ergonomics design, it is convenient and comfortable for holding and carrying. 5.0 inch IPS (720x1280) Work even with water or Gloves.
Abundant means of data transportation(option)
2G,3G,4G,Wifi,Bluetooth,etc.
Industrial grade durability:
IP66 industrial grade, solid and light body can bear the height of 1.2m dropping and 1000 times tumbled within the scope of 0.5m. Waterproof,dustproof provide long time using without fatiguet.
HD Camera:
Postposition 8 mega pixel autofocus camera, is convenient for client to collect all kind of images and video.
Multiple extensions:
Support GPS , AGPS and Beidou compass navigation.
Always-available wireless connection:
Supports 802.11 a/b/g/n full-band wireless communications and maintains real-time connection with the system to ensure high efficient operation.

FAQ:
1. Are you factory or trading company? We are factory.
2. OEM/ODM is ok? yes, we have own factory and strong R&D to support OEM/ODM.
3. Payment Terms: T/T, western Union, paypal, L/C etc.
4. MOQ: 1PC
5. Delivery time: Sample will be ship in 3~5 days after receipt payment
6. warranty: 15 months without man-made damage from the shipment date for our all products (Excluded the consumable parts).
7. Shipping: by sea, by air, or express
8. Sample: sample for test is ok.
9. Visit factory: yes, it is ok, before visiting, please contact us.
10. About Discount: discount depends on your quantity, bulk order will in more cheap price.
11: Can buyers decide the express company that wil be used?
Yes. Buyers can choose the express company they prefer or cooperated with.
12: Can Buyers use their own couriers or shipping agents?
Yes, buyers can use their own shipping agents.
13: Do I need to pay taxes when receive the samples?
It depends on invoice value and the customs policy of the destination country. Generally taxes will occur.
14: What's the lead time? (How long do you need to prepare my goods?
4-7days for sample orders. 20-40days for mass production orders (based on different quantities).
