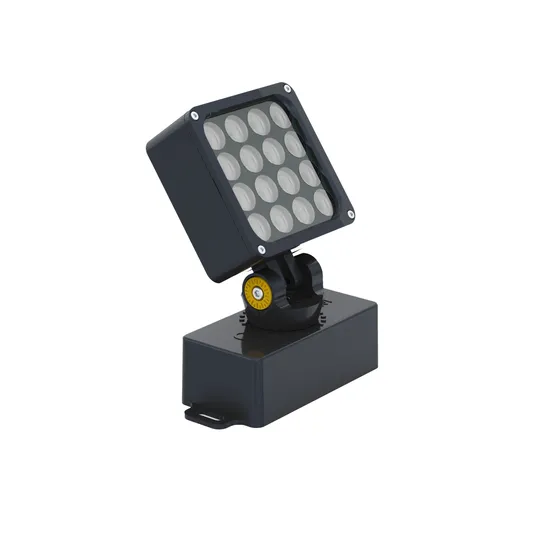

Spot Light Outdoor Stadium LED Project Flood Aluminum LED Beam Stage Lights

Spot Light Outdoor Stadium LED Project Flood Aluminum LED Beam Stage Lights

US$30.00-150.00 10 Pieces (MOQ)

Basic Info.

Model NO.
FW0512
Power
10-29W
Projection Distance
>35m
Application
Park, Square, Factory, Garden
IP Rating
IP66 Ik08
Certification
CCC, CE, CQC, EMC, LVD
Operating Voltage
110-130V
Input Voltage
24V
LED Chips Brand
CREE
Product Capacity
1000 Sets/Month
Fixture Finish
Black / Grey / Silver
Power Factor
>0.9
Accessory
Surface Mounting Bracket
Transport Package
125*125*235mm
Specification
125*125*235MM
Trademark
LUMINCONNECT
Origin
China
HS Code
9405409000
Production Capacity
10000pieces/Month

Product Description

Our Advantages Extruded aluminum and die-cast aluminum housing with high corrosion resistance.
DuPont outdoor electrostatic powder coating.
4mm thickness tempered glass. Fire-resistant Silicon seal gasket.
2.0W/(m·k)MCPCB.
Waterproof IP65 LED driver built-in
Various beam angle options
Product Description
ELECTRICAL



PHYSICAL


Rated Power

18W Max.

Dimension(mm)

125*125*235mm
LED brand

cree/ Epistar

Main Material

Aluminum,glass
CRI

>80

Fixture Finish

black / grey / silver
Color temperature

2700K, 3000K, 4000K, 5000K,6500K,RGBW

OPTICS


Lumen output

80lm/w@ 4000K

Beam Angle

5° 8° 10° 25° 30° 45° 60°
Life maintenance

>50,000 hours

Reflector/Diffuser

tempered glass
Input voltage

24V DC / 100-110V AC / 220-240V AC

SAFETY &PROTECTION
Power factor

>0.9

Ingress Protection

IP66 IK08
Driver option

Meanwell / MOSO / DONE

Operating Temperature

'-10ºC~50ºC
Switch/Protocol

ON-OFF / PWM / DMX512 / DALI

Accessory

surface mounting bracket
Wire connection

1x15cm cable without connectors

Warranty

3 years
Product Parameters
ELECTRICAL

FW1516

PHYSICAL


Rated Power

30W Max.

Dimension(mm)

150*150*260mm
LED brand

cree/ Epistar

Main Material

Aluminum,glass
CRI

>80

Fixture Finish

black / grey / silver
Color temperature

2700K, 3000K, 4000K, 5000K,6500K,RGBW

OPTICS


Lumen output

80lm/w@ 4000K

Beam Angle

5° 8° 10° 25° 30° 45° 60°
Life maintenance

>50,000 hours

Reflector/Diffuser

tempered glass
Input voltage

24V DC / 100-110V AC / 220-240V AC

SAFETY &PROTECTION
Power factor

>0.9

Ingress Protection

IP66 IK08
Driver option

Meanwell / MOSO / DONE

Operating Temperature

'-10ºC~50ºC
Switch/Protocol

ON-OFF / PWM / DMX512 / DALI

Accessory

surface mounting bracket
Wire connection

1x15cm cable without connectors

Warranty

3 years
ELECTRICAL

FW1519

PHYSICAL


Rated Power

30W Max.

Dimension(mm)

150*150*260mm
LED brand

cree/ Epistar

Main Material

Aluminum,glass
CRI

>80

Fixture Finish

black / grey / silver
Color temperature

2700K, 3000K, 4000K, 5000K,6500K,RGBW

OPTICS


Lumen output

80lm/w@ 4000K

Beam Angle

5° 8° 10° 25° 30° 45° 60°
Life maintenance

>50,000 hours

Reflector/Diffuser

tempered glass
Input voltage

24V DC / 100-110V AC / 220-240V AC

SAFETY &PROTECTION
Power factor

>0.9

Ingress Protection

IP66 IK08
Driver option

Meanwell / MOSO / DONE

Operating Temperature

'-10ºC~50ºC
Switch/Protocol

ON-OFF / PWM / DMX512 / DALI

Accessory

surface mounting bracket
Wire connection

1x15cm cable without connectors

Warranty

3 years
ELECTRICAL

FW0512M

PHYSICAL


Rated Power

100W Max.

Dimension(mm)

510*350*335mm
LED brand

cree / Epistar

Main Material

Aluminum,glass
CRI

>80

Fixture Finish

black / grey / silver
Color temperature

2700K, 3000K, 4000K, 5000K,6500K,RGBW

OPTICS


Lumen output

80lm/w@ 4000K

Beam Angle

5° 8° 10° 25° 30° 45° 60°
Life maintenance

>50,000 hours

Reflector/Diffuser

tempered glass
Input voltage

24V DC / 100-110V AC / 220-240V AC

SAFETY &PROTECTION
Power factor

>0.9

Ingress Protection

IP66 IK08
Driver option

Meanwell / MOSO / DONE

Operating Temperature

-10ºC~50ºC
Switch/Protocol

ON-OFF / PWM / DMX512 / DALI

Accessory

surface mounting bracket
Wire connection

1x15cm cable without connectors

Warranty

3 years
Installation Instructions
