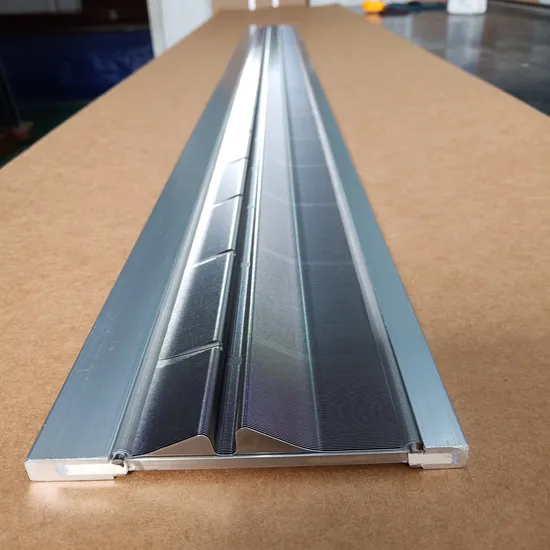

136 Dents Per 2 Inches Length 1200mm to 4200mm High Density and High Efficiency Textile Reed with Smooth Air Flow Channel for Toyota Series Weaving Looms

136 Dents Per 2 Inches Length 1200mm to 4200mm High Density and High Efficiency Textile Reed with Smooth Air Flow Channel for Toyota Series Weaving Looms

US$200.00
2-9 Meters
US$180.00
10-49 Meters
US$160.00
50-99 Meters
US$140.00
100-199 Meters
US$120.00
200+ Meters

Basic Info.

Model NO.
height 120mm
Processing Type
Metal Processing
Match Machine
Weaving Equipment
Material
Metal
Processing Level
Precision Finishing
Mechanical Process
CNC
Processing Trade
Processing with Imort Material
Certification
ISO9001: 2000
Customized
Customized
Condition
New
After-sales Service
Technical Support
Density
30d~150d/2 Inch
Length
250mm~5000mm
Height
110mm~122mm
Air Space
56mm
Air Flow Value
3800~4600
Transport Package
Standard Export Package
Specification
30#/2"~150#/2"
Trademark
HDK
Origin
Cn
HS Code
8448420000
Production Capacity
50000 Meters/Year

Product Description

Our company established in 1960's, it used to be the second largest factory in China and the third largest factory in Asia in textile accessories. we have more than 60 years of experience specially in producing weaving reeds.
Our profile reeds are used for all type of airjet looms, such as Toyota,Tsudakoma,Picanol,and so on. For different fabrics, the reeds are made from stainless steel 301 and 420,it makes the weaving more efficiency. And we can make reeds with special coating when weaving special fibers, the reeds are much more strong and can be used much longer. Shelf life can reach 3 years.
We can produce full range of reeds, the reed density can be from 30#/2"~150#/2", the reed length from 250mm~5000mm, and the height of reed can be 110mm, 116.5mm, 120mm and 122mm. The reeds adaptable for low and high speed airjet looms(speed from 600 rpm ~1100 rpm).
With selected material and advanced precessing facilities, our reeds accepted and satisfied by more and more customers for the high quality and good service.Our reeds occupied 30% of domestic market and exported to Korea, Vietnam, Thailand, Bangladesh, Pakistan, India, Turkey, Brazil, Uzbekistan, and many other countries in Asia and middle east.
