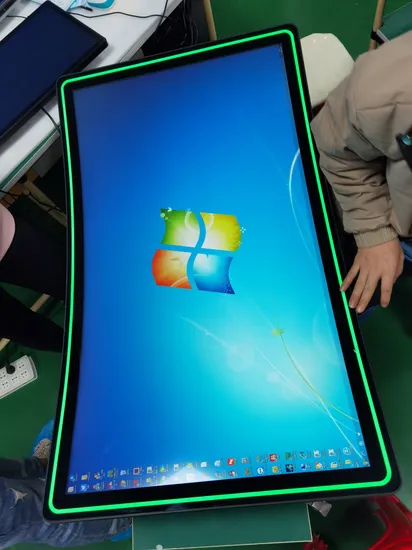

32 Inch Touch C Shape Curved Monitor Kiosk Gambling Machine Touch Screen Monitor

Product Description

Product Description
32 Inch Capacitive Curved Touch Screen Monitor LCD displayv LCD HD Screen with high clarity
v Surround impressions
v More extensive visual angle
v In immersive experience
v Widely used in shopping malls, supermarkets ect.
Touch display is a professional touch display product designed for games, high-end places, gambling, self-service terminals and other equipment, such as, self-service terminals, game consoles, gambling machines and so on. The utility model has the advantages of compact structure, convenient installation and high cost performance. All products adopt multi-point projection capacitance touch technology, which has the characteristics of fast touch response, high precision and strong anti-interference.
Product Parameters
Open frame touch monitor paramters
General

Product Name	Curved surface 32 inch touch display
Product Model	32"
LCD Panel	Active area	698.4(H)×392.85(V)mm
	Display ratio	16:9
	Back-light	LED
	Life time	More than 50000 hours
	Resolution	1920×1080
	Luminance	300cd/m2
	Contrast ratio	3000:01:00
	Response time	8ms
	Dot Pitch	0.363(H)×0.121(V)mm
	Colour	16.7M
	Viewing angle	H/V:178°/178°
PCAP Touch screen	Touch type	G + F+F capacitive touch technology
	Response time	<5ms
	Multi touch	10 Points touch
	Recognition area	>1.5mm
	Scan frequency	200HZ
	Scanning accuracy	4096 x 4096
	Interface	Full speed USB2.0,USB3.0
	Touch life time	More than 50 million yuan
	Working current	180Ma/DC+5V+/-5%
	Anti-light	Normal when the strong light changes
	Output type	Coordinate output
	Surface hardness	Thermal tempering,Mohs grade 7
	Operate system	And-roid/Wins
	Drive	Free drive, plug and play
Outside interface	HD-MI input	1
	V-GA	1
	Touch USB	1
	DC power	1
Power Supply	Working voltage	AC220V 50/60Hz
	Max. power	65W
	Standby power	1W
Use environment	Temperature	0~40°C
	Humidity	10~90%RH No condensation
Appearance information	Product size	765.8*458*107.24mm
	Carton size	860*570*230mm
	Net weight	11KG
	Gross weight	14KG
	Accessories	power line *1,HD-MI Cable*1,Touch USB Cable*1

Technical Drawing
Components
USB Cable 120cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Customization
Company ProfileOur Factory
• Dongguan CJTouch Electronic Co., Ltd, located in Dongguan, the city famous withits advanced manufacturing, was built on 2009.• It's a high-tech enterprise mainly specialized in researching, manufacturing,selling and repairing SAW,IR and touch whole products and in providing touch solutions.• Products : SAW and IR touch screen and touch monitor, all in one PC and touch kiosk.• Products to be used in : Gaming & gambling, POS, Medical equipment, Kiosk field and etc .• Accept OEM/ODM business.• Producing Capacity : 150 Thousand sets / year
What We Offer
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single & Multi-touch screens (custom sizes available)
Single & Multi-touch monitors (custom sizes and functions available)
All-in-one computers
ODM/OEM services
SAW ( Surface Acoustic Wave) Touch ScreenSAW ( Surface Acoustic Wave) Touch MonitorIR ( Infrared) Touch ScreenIR ( Infrared) Touch MonitorPCAP ( Project Capacitive ) Touch ScreenPCAP ( Project Capacitive ) Touch MonitorLCD DisplayLCD ScreenTouch FoilComputerAll in one touch PCInteractive Kiosk
Application fieldGaming / casino / ATM Kiosk / Hotle / KTV / TV
Industrial / Public inquiry / Coffee / Bar
Entertainment / Hospital / Restaruant / Advertising
Transport and Ticketing / Banking
Hospitality / Meeting / Teaching
Customizsed Solutions
Packaging & Shipping
