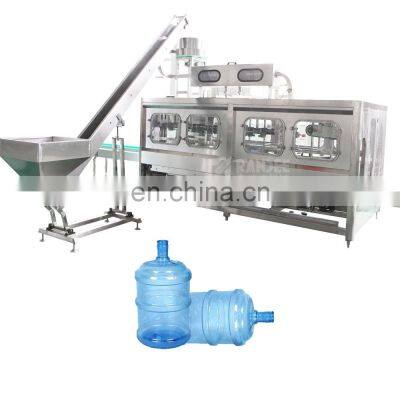

5 Gallon bottle drinking water bottling filling equipment production line 20L 19L jar drums washing filling sealing machine

Product Description

Product Description
5 Gallon bottle drinking water bottling filling equipment production line 20L 19L drums washing filling sealing machine
Product Description
Functions and features:
This water filling line specially for 3-5gallons barreled drink water,with type QGF-100,QGF-200,QGF-300,QGF-450,QGF-600,QGF-900,QGF-1200,It intergrates bottle washing,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,The washing machine use multi-washing liquid spray and-thimerosal spray,This thimerosal can be used circularly,The capping machine can cap barrel automatically ,this line equips with water spraying device in order to ensure those caps sterilizer and clean .it also can automatically carry out barrel ,washing,sterilizing ,filling ,capping ,counting and products discharging ,with complete function ,modern design and high degree of automation ,it is a new kind of barreeled water auto-production line ,which intergrates mechanism ,electricity and pneumatics technologies together .
1.Automatic break protection for power leakage and short circuit;
2.Under-pressure protection: when incoming air's pressure is Less than or equal 0.5MPa, the equipment will be automatically stopped.
3.Water-shortage protection: when the level of the water tank is lower than that of the liquid switch, the equipment will be automatically stopped.
4.Remarks:We can add other functions as customer's requirements like:hot tank heating washing,bottle external washing,cap washing ,capacity note and man-machine control.
Whole 5 gallon water filling line:

QGF-300 5 Gallon / 20liter water filling line with washing system
No.	Machine name	Model	Size(mm)
1	Automatic decapper	BG-1	850x650x1800
2	Interior and exterior brushing machine	STNW-2	2210*1340*2140
3	QGF-300 main washing filling capping machine	QGF-300	5000×1580×2000
4	Light checker	DJ-1	300×700×1000
5	Shrinking machine		900x700x1200
6	Feeding conveyor belt	Plastic chain
7	Products outlet conveyor	SUS304
8	Roller conveyor	SUS304
9	Laser / ink jet printer	20W	340*220*100

Detailed Images

Automatic decaper Automatic cap pulling out machine is corollary production equipment specially designed for 5 gallons barrel drinking water filling and production line. It is compact, high working efficiency and stable and reliable, high degree of automation, it is the machine electrical Trinity corollary equipment for 5 gallon barrel automatic water production line.
	Automatic bottle interior and exterior brushing machine: Automatic barrel external brushing machine is special use for 5 gallon barreled drink water production line. Especially for mineral drink water, can effective remove the deposit and alga materials bring by mineralize on the bottom of the barrel, this machine is under bottom of the barrel, both rinsing the inside and outside the barrel, obvious improve the rinsing efficiency, reduce the second pollution by second manual brushing and fall the labor intensity.
Automatic bottle loader: The empty barrel cleaned by inside and outside brushing machine sending through automatic loading system by transmission chain, loading barrel counter counting 2pcs barrels, blocking barrel cylinder action to stop feeding barrel, loading and pushing barrel action, and pushing barrel to barrel inverting frame reset, loading cylinder action to invert the barrel to level position and waiting for feeding barrel.
	Washing part: It has 2 rows and 9 steps washing Water amount of filing: 6T/H Consumption of water: consumption of water 1T/H(disinfection water reuse, water reuse one time)
Filling part: Uploading and dropping barrels changed from 45 degree to translatory which is more stable. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
	Capping part: Liquid level difference is controlled in 1cm. Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.
Light checker and steam heating shrink machine: Inspection light is used for lighting when inspect whether exist sundries in barrel. Heat shrinking machine is consist of water vessel and electric heat up, electric heat up to produce steam.
	Bottle conveyor system: Including: empty feeding system, plastic chain Full barrel conveyor system, SUS34 material

Company information
Workshop detail
Our exhibition
Project cases
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
