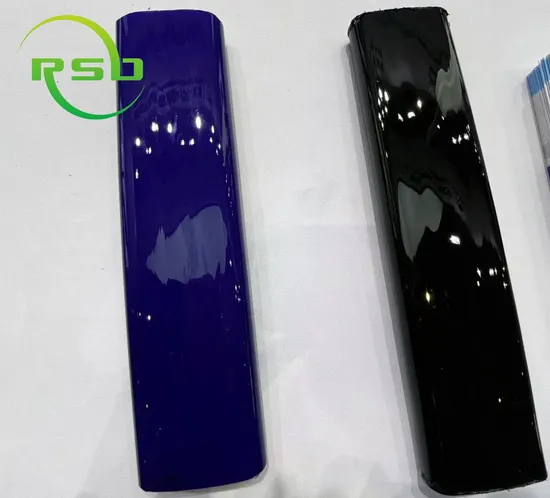

Suitable for Various Escalator High Wear-Resistant Colored Polyurethane Escalator Handrails

Product Description

Technical Specification

Size	A	B	C	D	E	F	G
PT3960S	39	60	73	24	7.5	9.5	6.5
PT3962S	39	62	75	24.5	7.5	10	6.5
PT4060S	40	60	73	24	7.5	9.5	6.5
PT4062S	40	62	75	24.5	7.5	10	6.5
PT4064S	40	64	77	24.5	7.5	10	6.5
PT4262S	42	62	76	25	8	10	6.5
PT4264S	42	64	78	25	8	10	6.5
PT4464S	44	64	78	25.5	8	10.5	6.5
PT4466S	44	66	80	25.5	8	10.5	6.5

The cross-section of PolyTech handrail products is shown in the figure, and various specifications and models are produced due to different sizes of each part. The assembly dimensions affected are bottom width A, inner width B, and inner height F.
The specifications of PolyTech handrail are shown in the following figure, which can meet the replacement installation requirements of most elevator manufacturers' handrail. Please select the model based on the key dimensions of installation, including lower width A, inner width B, and inner height F.
Our product:
Advantages:
1. Smooth and shiny
2.Safe and stable
3.Durable and antibacterial
4.Recyclable
5. We are manufacturer. We can produce the product you want. Size and color can be customized.
Customized
1. PolyTech can configure colors according to your needs, supporting Pantone, RAL, and sample color matching; We can also provide personalized printing patterns to achieve visual and marketing effects in the surrounding environment.
2. PolyTech utilizes modern color combinations or texture patterns, combined with the style of surrounding buildings, to achieve unique pattern designs.
3. PolyTech can provide promotional information printing services such as LOGO and advertising copy.
Performs:
The PolyTech handrail adopts high-quality TPU from imported or national premium brands, combined with high-performance high-strength steel wire and high wear-resistant canvas, to ensure the excellent performance of the overall handrail. Compared with rubber handrail, TPU has better mechanical properties, wear resistance, ozone resistance, UV resistance and antibacterial properties.
Our factory:
Exhibition shooting:
Our certificate:
FAQ
Q1:Are you factory or trading company?
A: We are factory, specialized in escalator handrail and elevator steel belt. Welcome to visit our factory.
Q2: What is your terms of packing?
A: Plastic woven belt, Carton Packaging, Wooden Cases or Your Request
Q3:What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4:What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5:How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6:Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7:What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q8:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q9:How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
