800mm 1200mm CNC Copy Routing Machine for Aluminium Window Lock Hole Milling

800mm 1200mm CNC Copy Routing Machine for Aluminium Window Lock Hole Milling

US$5,000.00
1 Piece
US$4,900.00
2+ Pieces

Basic Info.

Model NO.
LZX-800
Condition
New
Certification
CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Processing Types
Drilling,Milling,Routing and Tapping
Applicable Material
Aluminium Profile
Tool Change
Manul
Machining Stroke
800mm
Transport Package
LCL: Plywood Cases
Specification
3000*1750*2100mm
Trademark
Hisena
Origin
China
Production Capacity
100sets/Month

Product Description


Product Description

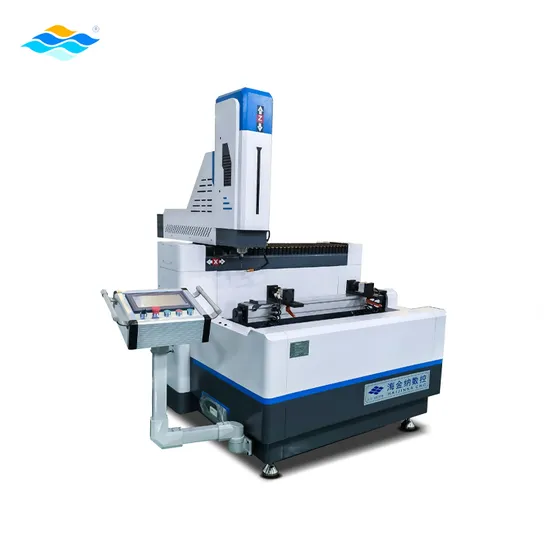

LZX-800 is a 3-axis cnc copy router which is used for automatic processing of lock hole and slot,water drain slots and hinge holes on pvc and aluminum windows and doors.
Standard Features:
Applicable material:pvc,aluminum profile X,Y,Z three axis with servo-feed,fully automatic processing. Programming is easy,graphics library for selecting the appropriate hole type and setting the size. The worktable can be turned over on three sides at 0 degrees, 90 degrees and -90 degrees which is friendly for 3 sides processing. Automatic coolant spraying.
Product Parameters
Model LZX-800
Power supply 380v/50hz
Air pressure 0.5-0.8mpa
Total power 5.75kw
Spindle motor power 3.5kw
Servo motor power 3*750w
Rotation speed 18000r/min
X-axis stroke 800mm
Y-axis stroke 300mm
Z-axis stroke 280mm
Processing range 100*120mm
X-axis feed rate 0-60m/min
Y,Z-axis feed tate 0-15m/min
Collet ER20
Dimension 1600*1500*2000mm
Weight 400Kg

Detailed Photos
HISENA specializing in production and selling UPVC and aluminum doorsand windows manufacturing machines.Our company is located in Jinan, China. We have professional team of 50staff in R&D, production, marketing and after-sales service.The greatest features of our machines are high quality, strong durabilityand stability, and we offer the best price/performance ratio without sacri-ficing quality.We provide multiple solutions to meet the different needs of customersand also we support the customization of equipment.HISENA has obtained lS0 9001,CE certificate, more than 10 patent cer.tificates, and high-tech enterprise certificate. Taking the customer expe.rience as the center, HISENA constantly updates the interactive experi-ence of machines and improves the use of operating procedures.The perfect pre-sales and after-sales service has won the unanimoustrust of many customers at home and abroad.
