Product Description

Product Description

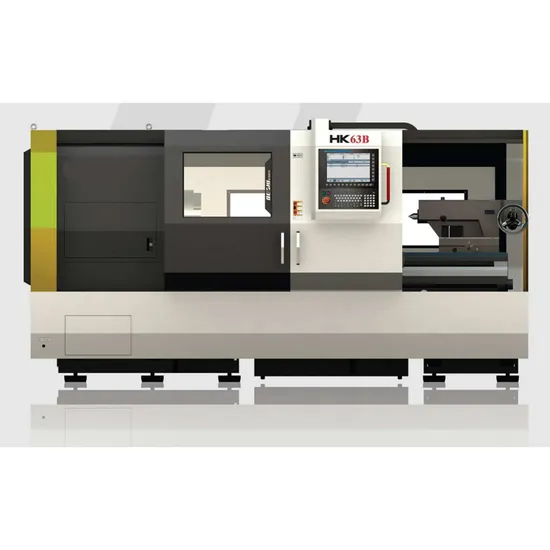

HK63/HK63B series simple CNC lathe, using high strength cast iron bed, the guide rail hardened, precision grinding, with wide bed guide rail, high rigidity, good accuracy retention and other characteristics; FANUCOiMate, Guangzhou GSK980T, Omori DASEN3i and other CNC systems are adopted.
It can automatically complete the processing of internal and external cylindrical surface, arbitrary conical surface, circular surface, end face, male inch thread, etc.
The standard four-station electric tool holder can meet the different needs of processing; Protective doors that can be opened and closed are conducive to safe and civilized production;
The centralized machine tool operation panel makes the programming operation extremely convenient. It is suitable for the processing of multi-variety, small and medium-sized batch products, and shows its superiority for complex and high-precision parts.
Product Parameters

Specifications
PARAMETERS
I T E M S	UNIT	HK63	HK63B
Capacity
Max. swing over bed	mm	φ630	φ630
Max. swing over slide	mm	φ360	φ360
Max.machining dia.	mm	φ 5 0 0 (Vertical 4-station)	φ630/φ500 (6-station turret)
Distance between centers	mm	1000/1500/2000	1000/1500/3000
Max. turning length	mm	760/1260/1760	760/1260/2760 (Vertical 4-station)
Bed way width	mm	425	560
Spindle
Spindle thru-hole	mm	φ84(manual chuck)/ φ80(hyd.chuck)	φ105
Type of Spindle nose		Al-I(manual chucky A2-8(hyd.chuck)	A1-11
Spindle speed	r/min	H:155-1600 M:50-525 L:20-210	H:112-1120 M:37-373 L:20-210
Spindle motor power	kW	11(Freq.changing motor)
Tailstock
Quill diameter	mm	φ80(manual tailstocky φ100(hyd. tailstock)	φ100
Quill travel	mm	200	250
Quill taper	kw	Morse No.5	Morse No.5
Feeds
X-axis travel	mm	305	370
Z-axis travel	mm	770/1270/1770	760/1310/2810
X/Z-axis motor power		1.8/2.5
Turret
X/Z-axis rapid traverse rate	m/min	6/6	6/7
Number of stations		4	4/6
Tool section	mm	32×32
Others
Power source	kVA	30
Dimensions(L×W×H)	mm	2800×1530×1670 3300×1530×1670 3800×1530×1670	3500/4000/5500×1580×1850
Mchine weight	kg	3500/3900/4300	4800/5100/6100

Detailed Photos
High torque and high precision spindle
Multiple control system for user choice
· High strength tail seat and good rigidity
