Heavy Duty Universal Turret Milling Machine with Servo Motor VHF350s

Product Description

MM-VHF350S - Universal Turret Type Milling Machine with Servo Motor - MAXNOVO MACHINE

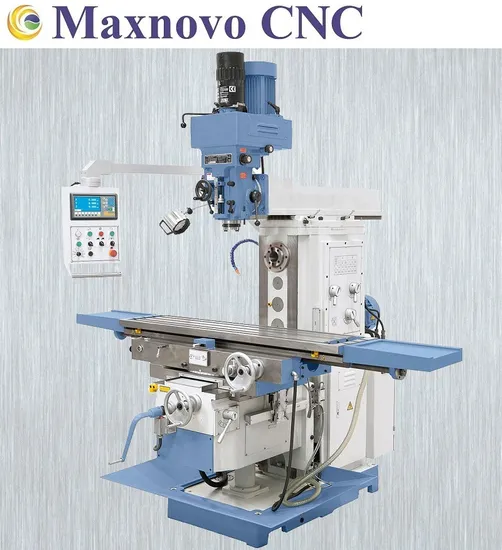

Universal Turret Type Milling Machine with Servo Motor (MM-VHF350S)
This kind of MM-VHF350S is solidly high precision universal Turret Milling Machine featuring moveable arm, Servo-Motor Drive for all axes, Vertical and Horizontal milling machining operations which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. The big dimensioned guiding in all axis guarantees absolute precision and wide spectrum of applications.
Product Description

High Precision Turret Milling Machine with Advanced Servo Motor Drive, Versatile in both Vertical and Horizontal Machining Operations
Main Feature :
Convincing Arguments : Quality, Efficiency and Price Large Cross Table at 1325 X 360 mm with T-slots treated Surface Advanced Servo-Motor Drive in complete three axes (X/Y/Z-axes) Versatile for Horizontal and Vertical Multi-functional Milling Capacity High Versatility due to Horizontal Spindle and Vertical Spindle Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing Quiet, precision-made headstock gears with hardened and ground gears Horizontal and Vertical Multi-functional Milling Capacity Hardened and polished guide-ways guarantee top accuracy Complete with rapid feed in X-axis , Y-axis and Z-axis to reduce downtime User-friendly arranged switches on swiveling control panel High versatility due to horizontal spindle Vertical and Horizontal spindle each have their separate drive Finely graduated feeds in all three axes driven by Servo Motor Machine body in heavy construction for vibration-free working Optimal adjustments spindle speed and feed allow economic machining various materials Solid cross table, generously dimensioned with precision surface finish High versatility due to horizontal spindle and vertical spindle Right-hand / Left-hand rotation for thread tapping Wide range of applications in general machine engineering and manufacturing Rapid Feeds in all three axes guarantee quick adjustment Milling head swivel 45 degree from left to right direction Automatic table feed in all three axis (X/Y/Z-axis) comes standard Ergonomically mounted switches on swiveling control panel Machine body in heavy cast iron construction for vibration-free working Working Table can Tilt-able is optional special spare part 3-axis Digital Position Indicator is optional special spare part Certificate of Original (CO, FORM A, FORM E, FORM F )
Product Parameters

Technical Data :

Product Name :	High Precision Turret Milling Machine with Servo Motor
Product Item :	MM-VHF350S
Table Size :	1325 X 360 mm
Max. Load Capacity of Table :	350 KGS
T-slot Size :	3 Pieces X 14 mm (Width) X 80 mm (Spacing)
Horizontal Spindle
Spindle Taper (Horizontal) :	ISO 50
Spindle Speed (Horizontal) :	60 - 1800 RPM (12 steps)
Max. Travel of RAM:	550 mm
Vertical Milling Head
Spindle Taper (Vertical) :	ISO 40
Spindle Speed (Vertical) :	65 - 4660 RPM (16 steps)
Spindle Sleeve Stroke :	127 mm
Milling Head Swivel Range :	-90 to +90 degree
Distance from Vertical Spindle to Table :	200 - 650 mm
Distance from Horizontal Spindle to Table :	20 - 470 mm
Distance from Horizontal Spindle to Arm :	245 mm
Travels
Max. Travel Longitudinal (X):	1100 mm
Max. Travel Cross (Y) :	320 mm
Max. Travel Vertical (Z) :	450 mm
Feed Speed Longitudinal (X) :	30 - 750 mm/min (8 steps)
Feed Speed Cross (Y) :	20 - 500 mm/min (8 steps)
Feed Speed Vertical (Z):	15 - 375 mm/min (8 steps)
Rapid Feed X-axis / Y-axis / Z-axis :	1200 / 800 / 600 mm /min
Drive Capacity
Motor Rating Horizontal Spindle :	5500 W
Motor Rating Vertical Spindle :	3700 W
Motor Rating X-axis Feed :	10 Nm (Servo Motor)
Motor Rating Y-axis Feed :	10 Nm (Servo Motor)
Motor Rating Z-axis Feed :	10 Nm (Servo Motor)
Coolant Pump Motor :	90W
Gross Weight :	2850 KGS
Packing Size :	2580 X 2150 X 2230 mm
Standard Accessory :	Servo-Motor, Milling Chuck, Chip Tray, Coolant System, Machine Light, Tools and Toolbox

Our Advantages
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance. Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE. The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy. Intensively Production Since 2003 the MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China.
There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning
of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine.
We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
From all the production material even a single resistor or a single cable, to hardware functions and sample test,we check
all the components and each possible performance of them. With every product we supply, we will make sure there is no mistake.
But due to some unavoidable reasons, if your purchase products from us are proven to be defective,we always
would take responsibility and take effective actions immediately for you.
High Precision Milling Machine for Demanding Users !
FAQ
1.Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

2.Question : How can I get some product samples ?
Answer : We are honored to offer you good product samples. New clients are expected to pay for the product sample cost and the international transportation cost. Product Sample cost would be deducted from the customers' next mass production purchase order in future.

3. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.


4. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1 -- 2 month since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.
