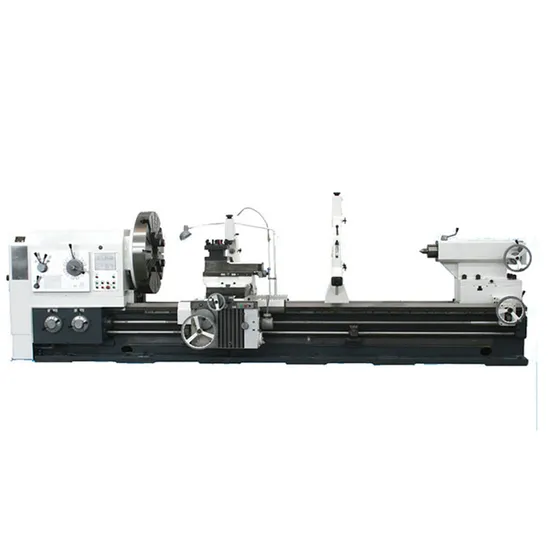

Big Bore Heavy Duty Precision Horizontal Metal Lathe Machine
| US$36,800.00-57,900.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CW61125B
Type
Horizontal Lathe
Processing Accessory
Metal Parts
Guide Rail
Inclined Guide Rail
Tool Holder
4-Position Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Name
Heavy Duty Precision Lathe Machine
Swing Over Bed Dia.
1000mm
Center Height
500mm
Max .Length of Work Piece
3000mm
Width of Bed
755mm
Spindle Bore Dia
130mm
Spindle Speed
3.5-291, 2-200r/Min
Spindle Motor
22kw
Max Cross Slide Travel
520mm
Max Top Slide Travel
300mm
Max. Travel of Tailstock
160mm
Diameter of Tailstock
300mm
Max Workpiece Weight
600kg
Transport Package
Wood Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84581900
Production Capacity
100sets/Month
Product Description
big Bore heavy duty precision Horizontal Metal Lathe machine FEATURELathe feature:
1. The side wall of bed is constructed of double-rib plates and internal rib plate employs combined structure of box-type and bevel ribs, Rigidity of machines increases a factor of by 1/3 times compared with that of n-type ribs of single wall.
2. Operations are concentrated. On the apron. there is a device which can move rapidly and is operated by a single handle. Braking and rotating direction change of spindle is visualizedly controlled by hydraulic system.
3. Both rigidity of construction and rigidity of transmission are high, so precision is stable and heavy cut can be carried out.
4. Owing to the saddle guideway which is inlaid with TSF wear-resisting material plate, the carriage moves lightly and nimbly. The service life of the guideway is extended. Lubricating system circulates from the external independent storage tank, thus cutting precision is increased.
5. The spindle bore is 104mm. The tailstock is equipped with a graduated disc and graduated line. The machine is characterized with elegant appearance and easy to be cleaned and maintained. SPECIFICATIONS
Lathe MAIN SPECIFICATION
| Model | CW61100B | CW61125B | CW61160B | |
| Max. Swing Diameter Over Bed | 1000mm | 1250mm | 1600mm | |
| Max. Length of Workpiece | 1500-12000mm | |||
| Max. Turning Diameter | 1300-11800mm | |||
| Max. Swing Diameter over Carriage | 610mm | 860mm | 1250mm | |
| Spindle Bore | 130mm | |||
| The Width of Rail | 755mm | |||
| The Hole Taper before Spindle (Metric System) | Front Φ140 Metric1:20 | |||
| Number of Speeds (Reverse) | 3.15-315 r/min | |||
| The Rotate Speed of Spindle | forward | 3.5-291 r/min | ||
| Reverse | 2-200 r/min | |||
| Range of Feeds | Longitudinal | 0.1~12mm(56kinds) | ||
| cross | 0.05-6mm(56kinds) | |||
| Upper tool post | 0.02-3mm, | |||
| The Range of hreads | The Kinds of Metric Threads | 1-120mm, 44kinds | ||
| The Kinds of Inch Thread | 28-1/4 t.p.i, 31kinds | |||
| The Kinds of Module Threads | 0.5-60mm, 45kinds | |||
| The Kinds of Diametral Pitch Threads | 1/2-56DP, 38,inds | |||
| The Range of Diametral Pitch Threads | 45mm × 45mm | |||
| Tool Post | Max cross slide travel | 520mm | 580mm | 630mm |
| Max top slide travel | 300mm | |||
| Max. Travel of tailstock | 160mm | |||
| Tailstock | Diameter of Tailstock | 300mm | ||
| Taper of tailstock | Morse 6 | |||
| Main motor | 22kw | |||
| Max workpiece weight | 600kg | |||
