Embedded Industrial PC with 128GB SSD, Waterproof Ports, and Capacitive Touchscreen

Product Description

Features

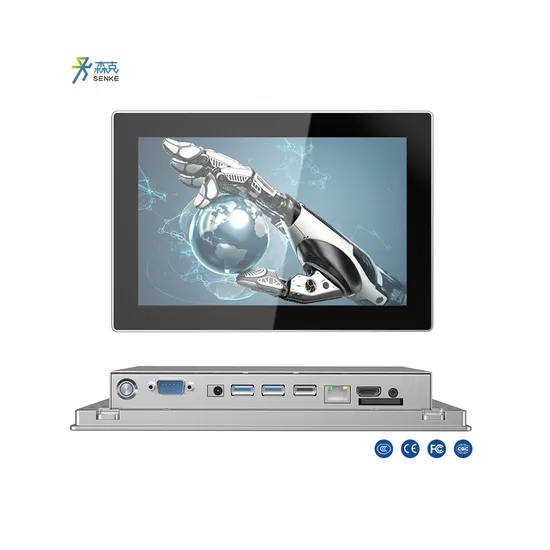

Overview Senke Touch 7 Inch Android Industrial Panel PC
The Senke industrial motherboard is a marvel of engineering with its fanless, fully enclosed design. This ensures a dustproof, zero-noise operation for stable and reliable performance. Its superior capability to resist electromagnetic interference makes it an ideal choice for demanding industrial settings.
Product Overview
Crafted from a customized aluminum alloy private mold, this product features an all-aluminum body for unparalleled durability. The front panel boasts an IP65 rating, ensuring the machine is not only dustproof but also pressure-resistant and capable of withstanding extreme temperatures. Powered by an independently customized industrial-grade motherboard, this product is designed with surge protection and anti-static features. Equipped with an Intel series CPU, it delivers lightning-fast performance with zero lag. It has passed rigorous EMI, ESD, and safety tests, making it ideal for complex application scenarios and offering holistic solutions for customers.

Basic parameters		Host Configuration
screen size	7 inch	Motherboard	DB01 series industrial motherboard
Resolution	1024*600	processor	Intel i5-3317U
screen ratio	16:9 (H:V)	platform	Ivy Bridge
brightness	200cd/m² (Typ.)	Memory	DDR3 4G
Contrast	800 : 1	*** capacity	128G
Display Color	262K/16.7M	Graphics	Integrated graphics: Intel HD Graphics 4000
Reaction time	16 (Typ.)(Tr+Td) ms	BIOS	1. AMI BIOS2. 64M SPI BIOS
Viewing angle	75/75/75/75 (Typ.)(CR≥10)	operating system	Windows 7
Dimensions	193.5*134.5*38mm	Host interface
Hole Size	187.5*128.5*38mm	DC Power Supply	1*DC IN Phoenix terminal
Touch Type	G+G capacitor	HDMI	1*HDMI OUT
working environment	0ºC-50ºC (10~90% without condensation)	USB	2*USB3.0,4*USB2.0
Storage environment	-20ºC-70 °C (10~90% without condensation)	COM	2*DB9-RS232/RS845 (optional) 4*DB9-RS232
Power Specifications	DC: 12VAC: 220V-60Hz	LAN	1* LAN/2* LANOnboard RTL 8111 Gigabit Ethernet
Material\Craftsmanship	Aluminum alloy, die-casting integrated molding process	WIFI	2.4G (standard) / 5.0G (optional)
color	silver	Audio	1*PHONE (output)
Installation	Embedded, wall-mounted, desktop	switch	1*Start switch + indicator light

Product Features
Reinforced with a die-cast aluminum alloy front frame and all-aluminum alloy shell, this product ensures enhanced strength and long-lasting durability. Experience superior touch sensitivity and clarity with the high-definition LCD display paired with an industrial-grade touch IC solution. Designed with an ultra-narrow frame, ultra-thin body, and hidden fixed buckle for a sleek, contemporary look. Enjoy dustproof, silent operation with stable and reliable performance, complemented by strong anti-electromagnetic interference capabilities. Seamless integration is made possible with an API docking port and EMO development routines. Company Profile
