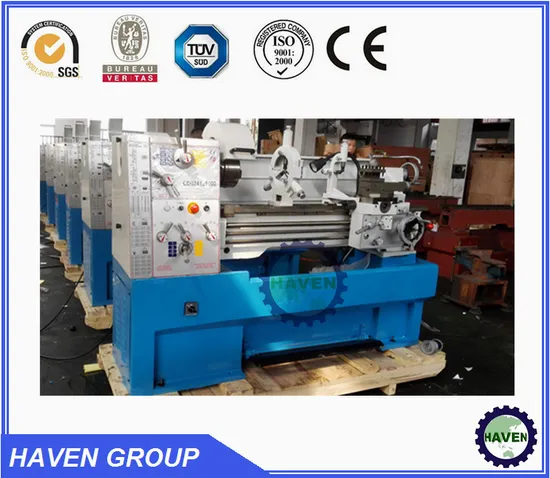

Multi-Purpose Lathe Machine C6241/1500
| US$99.00-9,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C6241/1500
Tool Holder
4 Stations Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
410mm
Swing Over Cross Slide
224mm
Swing in gap
640mm
spindle bore
58mm
Transport Package
Veneer Case
Specification
C6241/1500
Trademark
HAVEN
Origin
China
HS Code
8462
Production Capacity
30PCS/Month
Product Description
Multi-Purpose Lathe Machine C6241/1500Main Feature:
Precision ground and supersonic frequency hardened bed ways is designed in double wall structure, giving superb rigidity
The spindle system is high in rigidity and accuracy
The design of the main drive is optimized and the gears in the headstock are precision ground. The noise of the machine is low.
There is no need for change gears.
The machine can turn about 200 kinds of metric, whitworth, module and D.P. threads.
An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and eliable. A pedal braking device providing quick and effective stop, while operating.
Main specification:
| Specification | ||
| C6241 | C6246 | |
| Distance between center | 1000/1500/2000 | 1000/1500/2000 |
| Swing over bed | 410mm(16" ) | 460mm(18" ) |
| Swing over cross slide | 220mm(8-13/16" ) | 270mm(10-3/4" ) |
| Swing in gap | 640mm(25-1/8" ) | 690mm(27-1/8" ) |
| Valid length of gap | 165mm(6-1/2" ) | |
| Width of bed | 300mm(11-13/16" ) | |
| Headstock | ||
| Spindle nose | D1-6 | |
| Spindle bore | 58mm(2-1/4" ) | |
| Taper of spindle bore | No. 6 Morse | |
| Range of spindle speed | 12 changes, 25-2000r/min | |
| Feeds and threads | ||
| Max. travel of top slide | 128mm(5" ) | |
| Max. travel of cross slide | 285mm(11-1/4" ) | |
| Max. section of tool | 25× 25mm(1" × 1" ) | |
| Pitch thread of leadscrew | 6mm or 4T. P. I. | |
| Longitudinal feeds range | 42 kinds, 0.031-1.7mm/rev(0.0011" -0.0633" /rev) | |
| Cross feeds range | 42 kinds, 0.014-0.784mm/rev(0.00033" -0.01837" /rev) | |
| Metric threads range | 41 kinds, 0.1-14mm | |
| Inch threads range | 60 kinds, 2-112T. P. I. | |
| Diametrical pitches range | 50 kinds, 4-112DP | |
| Module pitches range | 34 kinds, 0.1-7MP | |
| Tailstock | ||
| Dia. of tailstock sleeve | 60mm(2-5/16" ) | |
| Travel of tailstock sleeve | 128mm(5" ) | |
| Taper of tailstock sleeve | No. 4 Morse | |
| Motor | ||
| Power of main motor | 5.5kW(7.5HP) 3PH | |
| Power of coolant pump | 0.1kW(1/8HP) 3PH | |
