Rubber Tile Vulcanizing Press/Tile Press Machine/Rubber Mat Making Equipment

Product Description

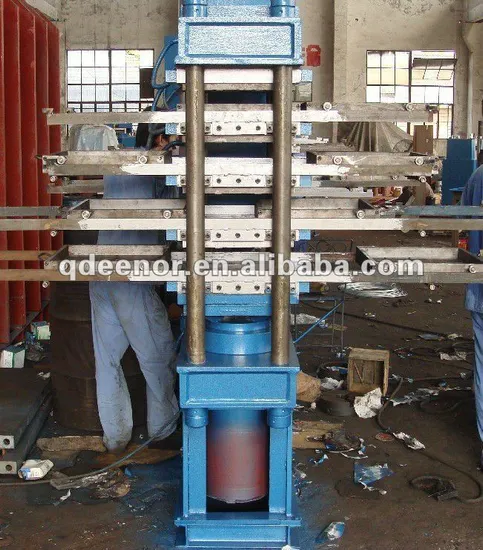

XLB 550x550x4 Rubber Tile making machine / Rubber Tile Vulcanzier/ Rubber tile press machine

equipment for the production of rubber floor mats

Name

Rubber Tile making machine / Rubber Tile machine / Rubber tile Vulcanizing press machine

USE

lab use ,rubber & plastic vulcanizing , rubber tiles making , rubber gasket making , conveyor belt and so on .

Introduction

INTRODUCTION

1.conching

Put the rubber granulates and stain into the stirring barrel to stir, and then put into the adhesive to stir.this process requires for 4-6 minutes ( because the adhesive is easy to cure, so stir it when use ).

2. Weighing raw materials

weight the rubber granulates stirred, according to the granulates' thickness requirement of the tiles .


3. Paving and pressing

Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.

4. Vulcanization molding

Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 3-8inutes finished. After that, Mold separate automatic, then remove floor tile on the shelves to dry.


5. Inspecting

Inspect the surface of the floor tiles formity, no aberration, no flaw, line with the product quality.



1.this kind machinery has three types of frame type, pillar type, and jaw type. It is economical, advantage of compact structure, high working pressure, high producing efficiency,. Operation is safe and reliable.

2. This series of products have high press in unit area , so that we can ensure the quality .

3.Machine can be equipped with model pulling and pushing device to reduce work strength based on product requirements .Hand control ,electrical control and PLC control is optional.

4.The working layer number can be designed as the request.

5. valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate rubber machine .

6.This type of machine is control by PLC , valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate rubber machine.


PARAMETERS

Model

XLB-D550x550x4

Total pressure (MN)

0.5

Plate size (mm)

550x550x45(Q235)

Daylight (mm)

150

Daylight no.

2

Piston stroke (mm)

400

Motor power (kw)

3.0

Overall size (mm)

2200x900x2200

Weight (mm)

3600
