New Fluoropolymer PCTFE Rod/Bar for Customized PCTFE Lip Seal/Washer/Seats

New Fluoropolymer PCTFE Rod/Bar for Customized PCTFE Lip Seal/Washer/Seats

US$200.00-400.00 10 Kg (MOQ)

Basic Info.

Water Absorption
<0.01%
Contraction Percentage
<0.4%
Tensile Strength
35MPa
Density
2.10-2.18g/cm3
Elongation at Break
20-75%
Temperature Range
-200-150 Degree
Dielectricity Strength
15kv/mm
Transport Package
Export Carton, Pallet
Specification
full specification
Trademark
hdgfz
Origin
China
HS Code
3902900090
Production Capacity
Big&Stable

Product Description

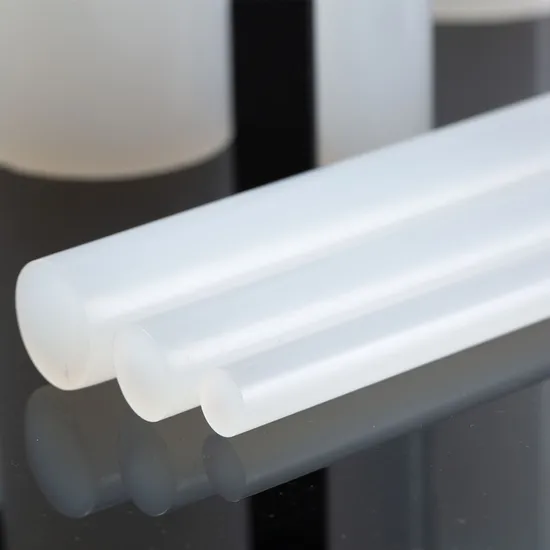

New fluoropolymer PCTFE rod/bar for customized PCTFE lip seal/washer/seats
New fluoropolymer PCTFE rod/bar for customized PCTFE lip seal/washer/seats
PCTFE from Polyfluor is especially suitable for cryogenic applications because the material can withstand very low temperatures. PCTFE is a kind of perfect sealing material under low temperature, high vacuum system and high pressure working conditions. It has excellent rigidity, low temperature resistance, cryogenic fluid resistance, and airflowresistance.
Further, PCTFE from Polyfluor has the following properties: . excellent low temperature resistant
. Good mechanical property
. Low coefficient of liner expansion
. Good dimensional stability
. Good penetration function
Over 25 years experience in the field of Fluoropolymer (PVDF, PFA, PCTFE, PTFE, FEP, ETFE)
The leading fluoropolymer manufactuer in China and global supplier of high performance plastics shapes and machined components.
We produce PCTFE Rods, PCTFE Sheets, PCTFE tubes and PCTFE seals& PCTFE seats as per drawing.
Product application
PCTFE is widely used for seals in the condition of low temperature with high pressure(gas, liquid nitrogen, liquid oxygen ect) ,semiconductor, chemical, pharmaceutical,aerospace and other relevant sealing area.
PCTFE ROD SIZELIST
Diameter (unit: mm) length 1 (unit: mm) length 2 (unit: mm)
3.0 / 1000
4.0 / 1000
5.0 / 1000
6.0 200 1000
7.0 200 1000
8.0 200 1000
10.0 200 1000
12.0 200 1000
13.0 200 1000
15.0 200 1000
16.0 200 1000
18.0 200 1000
20.0 200 1000
22.0 200 1000
25.0 200 1000
30.0 100~500 1000
35.0 100~500 1000
40.0 100~500 1000
45.0 100~500 1000
50.0 100~500 1000

Other products available
Company introduction:
Hongda was founded in 1999 and it is a professional manufaturer of high-performance plastics in the form of semi-finished products and finished parts.The products sell well throughout the country and exported to more than 20 countries&areas, which are widely used in chemical industry,semiconductor, gas&oil, pump&valve, water treatment...
