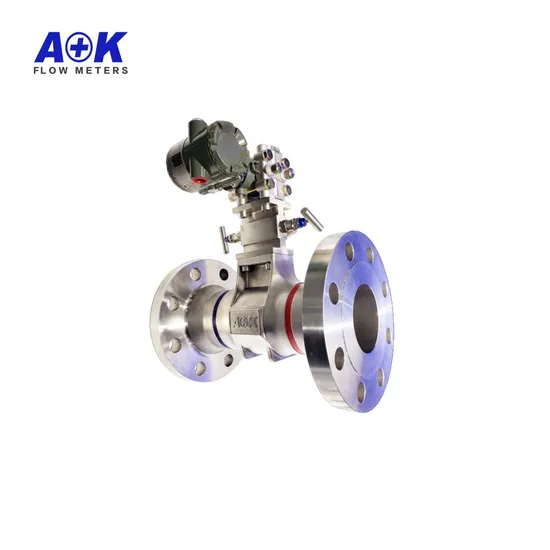

A+K High Accuracy, Large Turndown Ratio, Short Straight Pipe, Integrated Balanced Venturi Flow Meter
| US$1,500.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KPFVPP
Accuracy
±0.2-0.5%
Main Application
Water, Wastewater, Diesel Fuel, Fuel Oil, Nature Gas, Corrosive Liquid/Gas, Steam
Size
DN15-DN600
Sensor
Porous Orifice Plate
Application
Industrial Production
Type
Differential Pressure Flow Meter
Measuring Media
Liquid, Gas, Steam
Measuring Principle
Bernoulli
Measurement Object
Closed Pipeline
Certification
GB, ISO
Temperature
-253~1000°c
Pressure
<42m PA(Cl2500 Lb )
Turndown Ratio
10:1-50:1
Straight Pipe
Upstream 2D+ Downstream 2D
Permanent Pressure Loss
15% Dp
Flange Standard
ANSI B16.5, Hg/T20592, Hg/T20615
Transport Package
Wooden Crate
Specification
Material:CS, SS304, SS316, HASTELLOY, INCONEL, etc
Trademark
A+K
Origin
Shanghai
HS Code
9026201090
Production Capacity
10000 Sets/Year
Product Description
A+K Balanced Venturi Flow Meter was initially invented by NASA to measure liquid fuel of the spacecraft and
introduced by its subsidiary A+FlowTek to Shanghai Keyontechs Co., Ltd. in 2006.
A+K Balanced Venturi Flow Meter integrates the function of the flow conditioner and throttling sensor to meet the
measurement requirements either under high temperature & high pressure, or low temperature or other severe working
conditions. A+K BVFM also has short straight pipe requirement, high accuracy, wide application, low pressure
loss and other excellent performance, wining great recognition from more and more customers. More than
100,000 sets of BVFM have been selected and installed globally. The early batch of meters are still in service today,
more than 15 years in operation safely.
Excellent Performance
Balanced Venturi Flow Meter is with multiple advantages including high accuracy, wide turndown ration, short straight pipe
reguirement, low pressure loss, long-term stability, dirt-resistance, wide measuring range, wide applicability and so on. Also
with personalized design and customization service, BVFM enters into top grade flow meter industry.
Model selection example:
BVPPD008P13XXXXMGMDS2R-The basic model of the balanced Venturi flow meter is AKPPD008P13XXXXMGMDS, and the extension code 2R represents the design of the two groups of pressure tappings.
