Veinasa-ABS Auto Rain Sensor Meteo Station Outdoor Sensor Weather Station Equipment OEM Rain Sensor Rain Gauge Meter

Product Description

Veinasa-ABS Auto Rain Sensor Meteo Station Outdoor Sensor Weather Station Equipment Oem Rain Sensor Rain Gauge Meter
Product Description
The instrument is composed of rain bearing parts and metering components. Tipping bucket precipitation sensor is a kind of hydrological and meteorological instrument, which is used to measure rainfall in nature. At the same time, it converts rainfall into digital information output in the form of switching quantity to meet the needs of information transmission, processing, recording and display. The mouth of the rain is 200mm. The metering module is a dump mechanical bistable weighing mechanism, whose function is to convert the rainfall depth measured in mm into the output of switching signals. Patented anti insect net, anti blocking nozzle design, built-in level instrument, double reed pipe. In winter, the bucket cover, landing gear and bracket can be selected.
Features:
* Compact size for easy use
* High accuracy, good stability
* Mesh in the funnel preventing debris such as leaves and insects from entering the working of rain gauge
* Well-made tipping bucket with low resistance
* The main body made of ABS Plastic rain gauge meter is composed of rain bearing parts and metering components. Product Display
Characteristics: 1.Small volume, easy installation, high precision and good stability 2.Good linearity, long transmission distance, and strong anti-interference ability 3.Designed mesh in the funnel to prevent leave and debris from falling down 4.The supporting system of dump parts is well-manufactured and the friction moment is small, so the dump parts are sensitive to turnover, stable in performance and reliable in operation. 5.The instrument shell, made of ABS engineering plastics without rust and good appearance quality. 6.rainwater inlet, made of ABS engineering plastics, with high smoothness and small error caused by stagnant water. 7.The interior of the chassis is equipped with a horizontal adjusting bubble, which can assist the bottom angle to adjust the equipment to the optimum level.
Q:What's the warranty?
A:1 year after receiving the goods. Product Parameters

Cylinder	Diameter

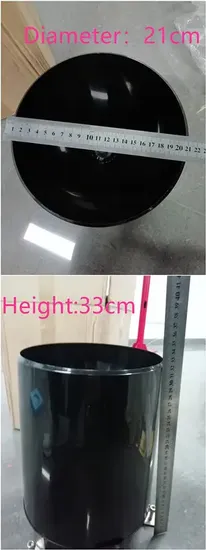

	φ200mm
Permitted current	5mA
Measuring range	≤8mm/min
Material	Quality ABS
Resolution	0.2mm
Weight	About 1kg
