Product Description

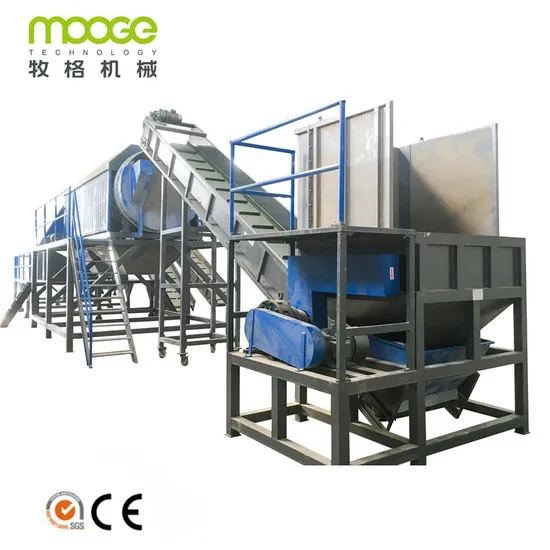

Waste Plastic PET HDPE Bottle Recycling Crushing Line Washing Machinery
Product Description
This MT-Series waste plastic recycling machine is designed and manufactured by MOOGE TECH which is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers.
The waste dirty pet bottles go through de-labelling, sorting, crushing, cold washing, hot washing, drying process will turn to be clean PET bottle flakes for reuse.
We can also manufacturing this waste plastic recycling machine components according to your special requirement.
Product Parameters
We have different capacity from 500kg/h to 5000 kg/h of this MT-Series waste pet bottle recycling line for your choice.
We can also design the layout in "L" or "U" type according to your special requirements

Model	Capacity	Installed Power	Steam Use	Water Supply	Manpower	Area Required
MT-500	500 kg/hr	190 KW	Optional Choice	4-5 m3/hr	4-6 Person	60*5*5 m
MT-1000	1000 kg/hr	260 KW	Optional Choice	6-8 m3/hr	8-10 Person	80*8*5 m
MT-2000	2000 kg/hr	400 KW	Suggest Use	10-15 m3/hr	10-12 Person	80*8*5 m
MT-3000	3000 kg/hr	600 KW	80,000 Kcal	20-30 m3/hr	12-16 Person	100*8*10 m
MT-4000	4000 kg/hr	800 KW	100,000 Kcal	30-40 m3/hr	15-20 Person	135*10*10 m
MT-5000	5000 kg/hr	1000 KW	120,000 Kcal	40-50 m3/hr	15-20 Person	135*10*10 m

Working Flow

S/N	Item Name	Qty	Function summary
Optional	CBL-1200 Underground Conveyor	1 SET	Put underground loading up bales
Optional	Bale opener machine	1 SET	Open the PET bottle bale
Optional	CBD-1000 Conveyor	1 SET	Feeding the PET bottles
Optional	RS-1500 Trommel Roller	1 SET	Loosen the bottles and screen out the dirty, sand and so on;
Optional	Pre-sorting conveyor	1 SET	Sorting out the film and different material
Optional	Magnetic Roller	1 SET	Remove the ferrous as iron, chromium and so on
Optional	Ferrous remover conveyor	1 SET	Ferrous metals detecting and separation automatically
1	Conveyor Belt	1 SET	Feeding the PET bottles
2	Label remover	1 SET	Remove the label from bottles
3	ST-1000 Sorting table	1 SET	Manually select out different color bottle and remove the remain label on bottle
Optional	Metal Detector	1 SET	Detecting the iron and other metal automatically
Optional	Side conveyor For metal detector	1 SET	Loading the different material from metal detector and sorting table
4-5	CBD-1000 Conveyor	2 SET	Feeding the PET bottles
6-7	S-1200 wet Crusher	1 SET	Crushing the material into the small size flakes
8-9	Screw Loader	1 SET	Loading the PET flakes and drain the water out from crusher
10	1st Auto floating washing tank	1 SET	Floating out label,cap and dirty
11	Screw Loader	1 SET	Loading PET flakes and drain out water from material
12	1st High speed frication washer	1 SET	High speed to remove dirty,humidity, so dirty water will not goes into washing tank
13	Label Separator	1 SET	Remove the label
14-15	Hot washing tank	2 SET	Washing the flakes with hot water and caustic soda,remove glue and grease
16-17	Screw Loader	2 SET	Loading PET flakes and drain out water from material,speed adjust by inverter
18	2nd High speed frication washer	1 SET	High speed to remove dirty,humidity,chemical water,glue and so on
19	2nd Auto floating washing tank	1 SET	Floating out label, cap and dirty
20	Screw Loader	1 SET	Loading PET flakes and drain out water from material
21	3rd Auto floating washing tank	1 SET	Floating out label,cap and dirty again
22	Screw Loader	1 SET	Loading PET flakes and drain out water from material
Optional	Fresh water spray washer	1 SET	Use fresh water washing flakes
23	Dewatering machine	1 SET	With high speed to remove water from PET flakes,and dry the flakes
24	Hot air drying system	1 SET	With hot air to drying the flakes
25	Label Separator final labels	1 SET	Remove the mini final label
26	Pneumatic Packing Silo	1 SET	Double chamber shifting use
27	Electric control box	1 SET	Control the whole line, over loaded protecting to motors
Optional	Jumbo bag filling and weighing system	1 SET	Automatic packing PET flakes and weighting
Optional	Magnetic Drawer	1 SET	Remove the ferrous as iron from PET flakes
Optional	Air conveying system	1 SET	Air conveying the PET flakes to Color sorter
Optional	Color sorter machine with high platform	1 SET	Sorting out one color PET flakes as customer's request
Optional	Air conveying system	3 SET	Air conveying the PET flakes to material sorter machine
Optional	Material sorter machine	1 SET	Sorting out PVC,PP/PE and so on from PET flakes

Detailed Photos
De-Baling machine Label Remover Machine
Function: Open the PET bottle bales Function: remove the labels from the bottles
Plastic Crusher Machine Floating Washing Tank
Function: crushing the bottles to PET flakes Function: washing the flakes, cleaning out the dirty
Hot Washing Tank Horizontal Dewatering Machine
Function: with hot water washing off oil/glue/dirty from flakes. Function: take out dirty and remover water
Hot Air Drying System Color Sorter Machine
Function: futher drying the bottle flakes with hot air Function: used to sorting out impurity color flakes
Related Product
Trommel Machine Pre-washer Machine
Function: Loosen the PET bottles, remove the sand/rock/stone Function: Pre-washing the waste pet bottles with cold water
from bottles, feeding out the bottles constantly or hot water to get high quality flakes
After Sales Service
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
In order to match your requirement and provide you a proper quotation, please advice:
• What material do you want to recycling? PET bottle? PE film? PP woven bag? PE/PP bottle? or others?
• What capacity(kg/h) do you want?
• What is the final size(mm) of flakes you want?
• Other special requirements about the plastic pet recycling washing line you want.
