Industrial Fish Meal and Fish Oil Machine and Equipment Production Line for Fish Waste

Product Description

Industrial fish meal and fish oil machine and equipment production line for fish waste
tion
Products Description
Fishmeal is a nutrient-rich and high protein supplement feed ingredient used primarily in diets for domestic animals and sometimes used as a high-quality organic fertilizer.it is high quality feed for different kinds animal such as dog, cat, cattle, fish, duck, chicken,the final meal can be easy digestion,absorbed nutrition can reach 90% or more,very good choice for many different animal feed!fish meal is made of the following raw material : whole fish ,different kinds fresh fish,fish heads,fish sausage and offals, different size shrimps,wet-handling feathers,livestock slaughtering offals,different kinds animal organs . It is a brown powder by rendering pressing the cooked whole fish or fish trimmings to remove most of the fish oil and water, and then ground. What remains is the "fishmeal".
The fish meal processing line mainly consists of a cooker, a press, a dryer, a cooler and a hammer mill etc.It is a modern design with easy operation, low energy consumption, low maintenance and long work life. The finished products are high quality fish meal and oil. Simple process introduction
The raw fish or fish steaks and waste are fed into crusher, and then continuously fed into the cooker by a conveyor.After the material is cooked, it is directly put into the press to get meal cake and oil. Meal cake goes into the dryer to dry.
Sizing
The pre-breaker is installed as the first stage of a fish meal plant , All knives and anvils are hard faced .Low operation costs are assured.The motor size and breaker shaft speed can be adjusted to the required capacity.
Pressing
Large capacity , occupy a small workshop area .Low power consumption , easy operation , management and maintenance. Low residual oil press cake , good oil quality , the processed cake is loose and not fragile .

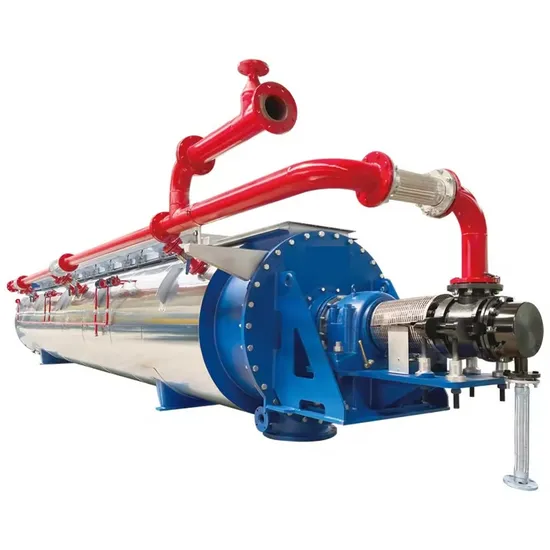

Cooking&heating
The cooker is to cook fish via high temperature..It's a main machine of the whole line.The indirect cooker are applied in processes where high yield from raw material of variable quality and composition is required .
Disc dryer
Indirectly steam-heated and designed for continuous cooking or drying of animals by-products or fish. The rotor consists of a central pipe on which vertically arranged and parallel discs with double walls have been welded. This design results in a concentrated heating surface offering maximum evaporation capacity in a compact design.
Horizontal centrifuge
1.Three phase separation; 2.Recover sludge efficiently, effect good oil separation;
3.The parts contacting with material are made of stainless steel;
4.8-10t/h capacity, stepless adjustable motor;
Mill
The mill is used to reduce the particle size of greaves after fat extractions. The reduction in size required at this stage dependson whether the meal is used directly in compound feeds or it will bepassed through a further stage of size reduction.
Air condition
The Air Condition is designed for condensing the processing vapours emitted from cooking or drying of meat or fish by products. The condensed water can be recycled to other plant.
Cooler
The quick water-flow type cooler will cool down the power and granular material. When the material gets cool, this machine will select out different size products.

Cooker Type	Capacity(t/h)	length(mm)	Height(mm)	Width(mm)	Weight(metric ton)
SZFC0605	2.6-3.5	3350	1050	1200	4
SZFC0806	6.4-8.0	8250	1850	1850	12
SZFC0808	8.8-11.0	10200	1850	1850	14
SZFC1108	12.8-16.0	10900	2350	2200	20
SZFC1110	16.0-20.0	12800	2350	2200	23
SZFC1112	20.0-25.0	14850	2350	2200	27
SZFC1310	20.0-25.0	13050	2450	2200	32
SZFC1312	24.0-30.0	15050	2450	2200	36
SZFC1314	28.0-35.0	17050	2450	2200	40
SZFC1612	30.4-38.0	15150	3450	2400	40
SZFC1614	35.2-44.0	17150	3450	2400	47
SZFC1616	40.0-50.0	19150	3450	2400	55

Application Whole fish(different kinds of fresh fish, fish heads, fish sausages and offals,fish waste),food waste, other aquatic products,like shrimp,loach,etc
Final product: skimmed fish meal
Moisture of final product: less than 12%
Note: usually the capacity of fish meal is based on fish type and fish qualityIf you want to know more, please contact me
Packing & Logistic
Package: standard package for sea
We usually pack our products by standard sea package. We always choose the best and safe packaging material to make sure your product won't be damaged during delivery.
