New Electric Forklift 2ton 3ton 3.5ton 3m 6m Lifting Height Pallet Stacker RC Forklift Crane Full Electric Forklift Stacker

Product Description

THE MAIN FEATURES OF lONKING FORKLIFT

Product Description

Engine	Equipped with xinchaic490 engine which has which have a power energy and energy Conservation,
	It has fast and reliable ignition,low fuel consumption and powerful motivity, sing direct injection technique.2
	It has good reliability and long work life-time.
	low noise and emission meeting the requirements of European E-Mark IIIA Regulations.
Pipeline:	high-pressure oil line use the first brand oil tube .it has excellent resistance which can ensure its long service life
Hydraulic system:	double pump confluence, small system flow, low power consumption, reliable performance excellent operating performance
Cabin	with air conditioner and heating and heating and rupture embrace explosion-proof wide view and comfortable seats and flexible control
	Mast box_type internal extent mast special all-round bearing increasing the lifting performance
Fork :	use the cascade fork with hydraulic fork positioner easy operation and reduce drivers' labor intensity
Steering axle:	Adopt transverse oil cylinder type bridge full hydraulic flexible and light reliable transmission
	Torque improved technology reliable performance convenient maintenance Smooth transmission and convenient operation
Control system	pilot valve control device to make the work efficiently which can reduce the driver's labor intensity
Tyre:	high-class brand pneumatic tire resistance to wear and sting high strengths tyre it can bear the heavy loaded , safe and reliable

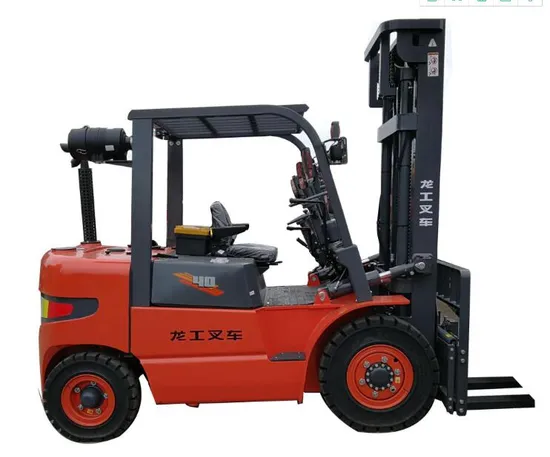

model	unit	LG30DTN	LG35DTN
		CPCD30	CPCD35
power type		Diesel
Rated capacity	kg	3000	3500
J Load center	mm	500
Max height (with Load-backrest	mm	4212	4212
Max lifting height	mm	3000	3000
mast height (no lifting)	mm	2070	2180
free lifting height	mm	165	170
load backrest(from the fork)	mm	1222	1222
the distance from seat to roof	mm	1030	1030
Overhead guard	mm	2175	2175
Overall length(with fork)	mm	3803	3866
Ovarall length (without fork)	mm	2733	2796
front overhang	mm	478	496
Rear overhang	mm	555	600
wheel base	mm	1700	1700
Tracktion hook height	mm	280	280
Min ground clearance(from the end of the mast)	mm	135	135
the width of chassis outside	mm	1225	1225
Adjusting distance of fork outside max/min	mm	1060/250	1060/250
front wheel tread	mm	1000	1000
Rear wheel tread	mm	970	970
Minimum turning radius(outward)	mm	2420	2470
Minimum turning radius(inside)	mm	200	200
Min. right angle aisle width	mm	2380	2400
mm		6forward /12 backward

Detailed Photos
DIFFERENT MODELS FOR YOUR CHOICE
Our Advantages
Pre-sale service
1) Listen to customer needs
2) Provide free preliminary machine design plan and flow chart,choose and supply the most reasonable configuration equipment;
3) Support remote meetings and visit factory remotely;
4)Offer the professional advice to customer to confirm the final selection
5) Support site visits to factory;
In-sale service
1) All equipment is qualified for installation and commissioning before leaving the factory; supports remote video quality inspection;
2) The disassembly and packaging process of all machines before leaving the factory, providing photos, videos, and annotations;
3) Online or offline free training of buyers' operators (China)
4) Assist buyers to install and debug equipment (overseas)
After-sales service
1) 7*24 hours online service; remote real-time video resolution;
2) During the first installation and commissioning process, problems encountered during normal operation should be solved in time;
3) Periodic process inspection and use effect, and timely suggestions for machine maintenance;
4) Lifetime free technical guidance
5) Update the latest industry information in a timely manner.

Packaging & Shipping
