Advanced Automatic Cone Blender for Dry Powder Mixing

Product Description

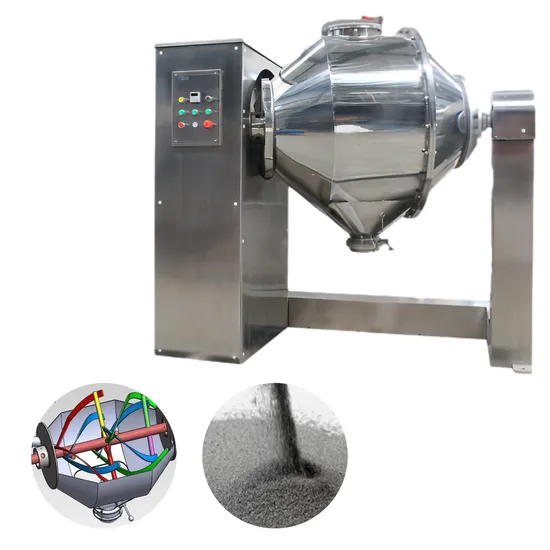

The Double Cone Mixer features a double cone structure where materials tumble back and forth inside the drum. It rotates clockwise for several minutes and can then reverse, accelerating material diffusion, flow, and shearing. This process prevents material segregation and ensures thorough mixing without dead spots, effectively achieving uniform blending for materials of various sizes and types.
The Double Cone Mixer contributes to achieving uniform material blending, reducing mixing time, lowering energy consumption, ensuring product quality, and enhancing production efficiency. It delivers certain social and economic benefits, making it an ideal equipment choice for solid powder grinding and mixing.
Product Features
1. Versatility: Suitable for mixing various materials including powders, granules, and pastes;
2. Gentle Mixing: Ensure uniform blending without damaging delicate ingredients;
3. Efficient Mixing: Achieves thorough mixing in a relatively short time;
4. Easy-Cleaning: Designed for quick and thorough cleaning between batches;
5. Durable Construction: Built with robust materials for long-term reliability;
6. Wide Application: Used across industries such as pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Device Model	Total Capacity of the Mixing Drum	Filling Coefficient	Motor Power	Overall Dimensions	Installed Weight
	m³	(1/2)	(kW)	(Length x Width x Height) mm	Kg
RX-0.1	0.1	0.5	1.1	1580x650x1350	550
RX-0.2	0.2	0.5	1.5	1800x750x1650	680
RX-0.3	0.3	0.5	2.2	2050x850x1850	800
RX-0.4	0.4	0.5	3	2300x950x1850	1000
RX-0.5	0.5	0.5	3	2400x1050x2100	1200
RX-0.8	0.8	0.5	4	2500x1200x2300	1400
RX-1	1	0.5	4	2800x1500x2500	1800
RX-2	2	0.5	5.5	3400x1600x2700	2100
RX-3	3	0.5	7.5	3500x1680x2900	2400
RX-4	4	0.5	7.5	3600x1800x3100	2600
RX-5	5	0.5	11	3900x1900x3300	2800
RX-6	6	0.5	11	4100x2000x3500	3000
RX-8	8	0.5	15	4300x2200x3700	4000

Product Display
Application
The Double Cone Mixer can be used in industries such as powder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry.
