Full-Automatic Fruit Carton Box Cardboard Paraffin Wax Coating Machine

Product Description

carton package machine corrugated board wax coating machine
Product Description
TLJ series waxing machine is a special equipment for double-sided waxing corrugated board in the production of carton. It is an indispensable equipment in the production process of corrugated carton. The machine has stable working performance, flexible rotation, exquisite materials, uniform wax coating, simple structure, beautiful appearance and convenient operation
Function and characteristics of the whole machine
1.The leading edge of the paper feeding department
2.Wax coating
3. Transmission Department
4.The wax section
5.Electrical Department
6.Reaction kettle
7.Stacking paper receiving department
Product Parameters
Main Technical Parameter:

Models	TLJ - 2000
Suitable for board production	B.C.A/B, B/C, E/E, E
Feed speed	1-170m/min (non-production speed)
Paper feed way	Put it on the leading edge by hand, and input it automatically
Maximum feed width	1800mm
Minimum feed width	450mm
Applicable board thickness	1-15mm
Waxing grams	The amount of wax per square meter of cardboard is not more than 10 grams
Total heating power	About 35-55 a a
Voltage	AC-380V
The host horsepower	60Hz 4KW 380V(three-phase) horizontal motor with frequency converter
Smoke wax horsepower	60Hz 1.1KW 380V(three-phase) horizontal motor with frequency converter
Induced draft fan	3.0KW 60Hz 380V(three-phase)
Heat the electric heating plate	220 v * 150 w * 2 * 2000 mm
Heat the electric heating plate	220 v * 150 w * 8 pieces
Heat up the electric heating tube	220V*750W*2fc
Main engine drive triangle belt	B48 * 2
Wax rubber roller	High temperature resistant silicone gel 200-220 degrees

FAQ
1.Professional customer After-sale service.
2.More than 20 years carton machine production experience.
3.24 hours friendly helpful customer services.
4. we took the lead through the ISO9001 certification in carton package industry in China,strict standard quality requirement.
5.Our products sell well in more than 20 provinces and cities nationwide, also in western Europe,Asia and other countries.
6.OEM Accepted: The products can be customized.
More About Us
Packaging&Delivery
Thanks for your visit! More details please contact us freely.

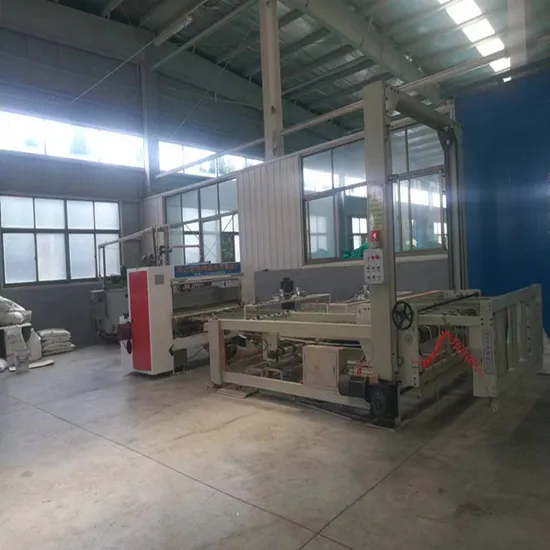

Detailed Photos
