2021 New Model High Speed Double Fine Copper Wire Drawing Machine Single Wire Drawing Machine

Product Description

2021 New Model High Speed Double Fine Copper Wire Drawing Machine Single Wire Drawing Machine Product Description
Introduction:
The production line is highly integrated by uncoiling, leveling, forming, cutting off, punching, receiving and related process.The whole production line is controlled by PCL program.Operators can select a preset program to run the whole line automatically by using touch screen.The methods of operation include automatic control, manual control, separate operation and emergency stop .

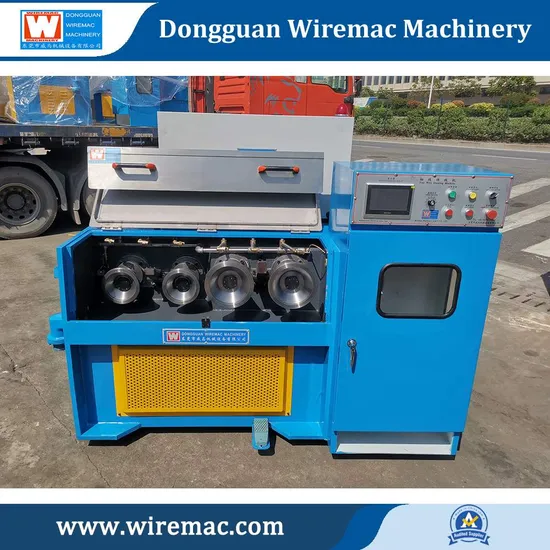

Fine Wire Drawing Machine:
Characteristics
1. Automatic tension control by dual-inverter.
2. Zero-slip pilot design, high productivity.
3. Low power consumption, a reduction of 20%-25% compared with the traditional type of machine, reduced production costs.
4. Widely used imported advanced parts and components ensure high reliability.
Product Parameters
Technical Parameters

Name	24DHA	24DHB
Power control	Dual - inverter
Inlet diameter	Φ 0.6 - 1.2 mm	Φ 0.6 - 1.2 mm
Outlet diameter	Φ 0.08 - 0.32 mm	Φ 0.08 - 0.32 mm
Drawing line speed	2500 m/min	2500 m/min
Drawing dies No.(Max)	24	24
Mechanical Elongation Rate	15% + 8.7%	13% + 8.7%
Construction of the machine body	Monoblock casting
Capstan	Imported high quality ceramic
Capstan dia.(Max)	Φ 206.85 mm
Dimension of take- up spool	Φ 300 x 215 x 270 / Φ 300 x 215 x 290 mm
Traverse method	Flat belt
Drawing / take-up motor	AC 11KW / AC 4KW
Drive	Imported advanced flat belt drive
Control type	PID Dual Inverter automatic control
Maximum copper load	50 kg
Power supply	380V, 50/60Hz
Lubricantion type	Spray type
Brake	Magnetic brake
Machine dimension	L2670 x W1500 x H1950 mm
Machine weight	2200 kgs

Detailed Photos
Company Profile
WIREMAC MACHINERY EQPT. CO., LTD. is located in Humen,Dongguan, a Famous historic town in China.It is wire and cable equipment manufacturer integreating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing industry research, production of a variety of high-speed micro-drawing machine.Small drawing machine, small drawing continuous annealing machine, medium and small drawing machine, medium and small continuous annealing machine, medium drawing continuous annealing machine, large drawing machine, large drawing continuous annealing machine, wire drawing machine, annealing tin plating machine and other products.
The company upholds the spirit of "honesty-base, quality-based" enterprise, we will continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the "high-quality and efficient" business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory Marketing and service.
Our Service
CONSULTING SERVICE
A team of experienced engineers are ready to advise you personally.
Your benefits at a glance:Problems can be solved quickly over the phone and internet in direct contact with the correct employee for the issue at hand.
SPARE PARTS SERVICEThe strengths of our skilled employees include expert advice, offering spare parts specific to your requirements and short delivery times.
Your benefits at a glance:Increased processing times for your machines thanks to the prompt delivery of spare parts.You receive original parts that are specially optimized for your machines.
MAINTENANCE SERVICEHMP carries out regular maintenance as part of its service agreements.
Your benefits at a glance:Expert maintenance of your machines is key to increasing machine availability and product quality.
INSPECTION SERVICEWe carry out preventive maintenance on your machines.
Your benefits at a glance:Potential faults are recognized at an early stage, giving us time to carry out preventive maintenance work.This helps avoid unscheduled downtime and costs.
TRAINING SERVICEWe can organize individual training courses for you at your factory or at our premises.
Your benefits at a glance:Well-trained staff ensure increased machine utilization and improved product quality.Employees get to meet their contact partners at HMP personally.
AFTER SALES SERVICE
1) 24 hours service on Internet and Telephone, free instructions and problem solving.
2) Free training to make sure a master of the operating of line for the person who come to our factory.
3) User-friendly English manual or operating video for machine using and maintaining.
4) On-the-spot training, installation and repairing can be meet if required.
(If so, the buyer should afford the visa and air ticket and allowance 100USD/DAY Salary)
Our Advantages
1. All the electrical elements, Circuit breaker protection and AC contactors are world famous brand.
2. International CE standard high flexibility, high shielding cables.
3. Warranty time:1 year
4. Quotation validity: 90 days
5. Payment terms: 30% deposit, 70% balance made before shipment
6. Delivery time: 30 days upon receipt of 30% deposit by T/T
Location:
1. Only 35 minutes from Guangzhou city to Dongguan city by high speed train.
2. Just 40 minutes from Shenzhen city to Dongguan city by high speed train.
3. Total 1.5 hours by car from Guangzhou airport to our factory.
4. Only 1 hour by car from Shenzhen airport to our factory.
FAQ
1. Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2. Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3. Q: What is the MOQ?
A: One set
4. Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6. Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO 9001.Every machine has to past testing running before it's packed for shipment.
7. Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
9. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you to solve the material(steel coil)purchase, worker train, international market price.
10. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
