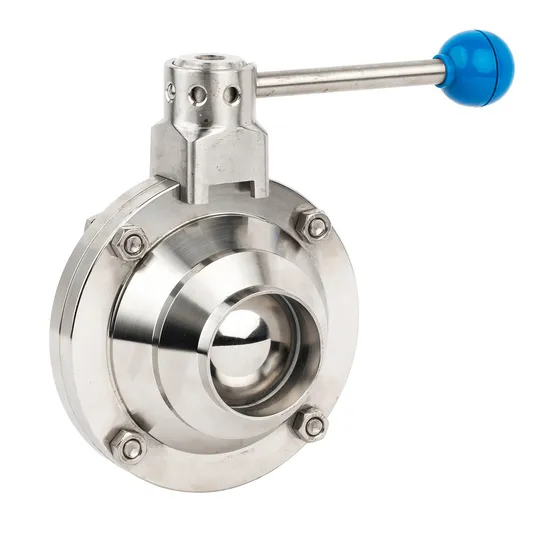

Stainless Steel Sanitary Hygienic Pneumatic Actuator Ball Butterfly Valve

Product Description

Product Name:Stainless Steel SS304 Sanitary Hygienic Ball&Check&Butterfly Valve
Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Technical Parameters

Standard	3A,SMS,DIN,ISO,RJT,IDF
Product wetted steel parts	AISI304/AISI316L	Provided with material inspection report
Other steel parts	AISI304
Size	3/4"~6",DN20~DN150,19mm~152.4mm
Seal material	EPDM/VMQ/FPM	All seals material comply with FDA21CFR117.2600
Working pressure	≤10bar(145psi)
Supply pressure for air actuator	5~8(0~116psi)
Working temperature	EPDM:-14~248ºF(-10~120ºC)
	VMQ:-58~356ºF(-50~180ºC)
	FPM:22~446ºF(-30~230ºC)
	Other materials are avaible upon request
Sterilization temperature	302ºF(150ºC,max 20min)
Outside surface treatment	Ra16~32uin(o.4~0.8um)
Inside surface treatment	Ra32~64uin(o.8~1.6um)
Connetion ends	butt-weld,clamped ends,male ends, flange ends
Pneumatic head	Normally closed(NC)-Air to open,spring to close
	Normally open(NO)-Air to close,spring to open
	Air to air(AA)-Air to open,air to close

Options
1.The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
3.Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.
4.Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
5.Control: position sensor, C-top controller, C-top controller (AS-I)
Design Features
1.Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
2.Available in sizes from DN25 / 1" to DN300 / 12"
3.Multiposition handles can be used for valves up to DN100 / 4";
4.Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle,
5.pneumatic actuator and electric actuator are interchangeable.
6.Seals comply with FDA 21CFR 177. 2600.
7.The valve body can be customized with a wide selection of different connections.
Our products are widely applied to dairy,food,beer,beverage,chemical indsutry of equipment,and cosmetic industries.All technical aspects have reached the international leading levels and are in conformance with GMP requirements. Provide process design,machinery manufacturing,installation,technical training.
Our Service

On Samples	Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales	Free replacement if there is any quality problem
On Delivery	Never delay delivery time
On Materials	Ensure material pure
Ensure material pure	Welcome
