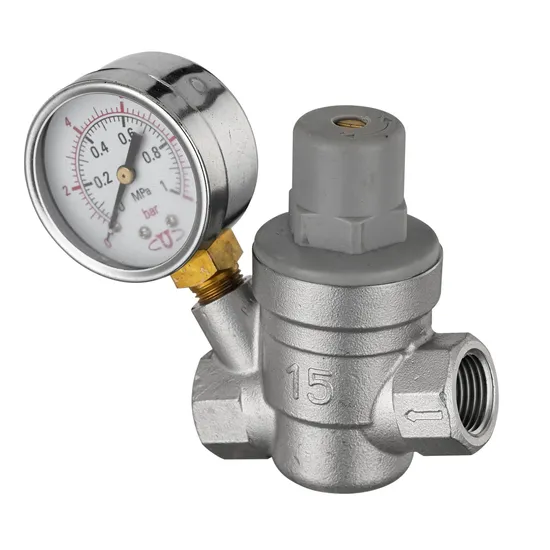

Water Pressure Regulator with NBR, EPDM and FKM Seal Materials
| US$20.00-71.50 | 1 Set (MOQ) |
Basic Info.
Model NO.
CY11X
Certification
CCC, RoHS, ISO, CE
Temperature
Ordinary Temperature
Connection
Thread & Flange
Valve Seat
Single-Seat
Structure
Diaphragm
Material
Brass & Stainless Steel
ISO9001:2008
with Patent Certificate
12 Months Quality Guarantee
with Optional Gauge
for Water and Air
with Stainless Steel and Brass Body
OEM Service
SS304 Interior Parts contacts media
Transport Package
Export Packing
Specification
330*310*260mm
Trademark
YJ
Origin
China
HS Code
8481100090
Production Capacity
50, 000 PCS/Year
Product Description
It is direct operated and automatic pressure regulating valve used widely for various kinds of industry fields. Pressure reducingFeatures:
1) Sensitive reduction pressure, steady outlet pressure
2) With strainer
3) Pressure gauge can be installed according to users' request. Checking pressure value, regulating valve conveniently and accurately
4) Compact construction, light weight and small volume
Specifications:
1) Inlet pressure range: 1 - 16bar
2) Outlet pressure range: 1 - 6bar
3) Max. Pressure reduction ratio inlet to outlet pressure: 6: 1
4) Diameter: 15 - 50mm
5) Medium: Water
6) Medium temperature: 0 - 65C
7) With optional pressure gauge
8) Body materials: Stainless steel or brass
Size:
| Orifice size (mm) | 15 | 20 | 25 | ||
| Port size(BSP,NPT) | Female thread 1/2" | Female thread 3/4" | Female thread 1" | Male thread 1-1/4 | |
| Valve body | Brass or S.S | Brass or S.S | S.S or brass | Brass | |
| Fluid | Water, compressed air | ||||
| Fluid Temp. (C) | ≤65 | ||||
| Max. inlet pressure P1 (bar) | 16 | ||||
| Outlet pressure range P2 (bar) | 1~6 | ||||
| Max. reducing rate P1: P2 | 6:1 | ||||
| Flow rate (Kv) | See flow rate drawing | ||||
