Best 3 Axis Metal Cutting CNC Milling Machine
Basic Info.
Model NO.
VMC850
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Worktable Size
500X1000, 600X1200
Transport Package
Good Wooden Case
Specification
2800x2500x2700
Trademark
AJMTG
Origin
China
HS Code
8457101000
Production Capacity
1200 Sets Per Year
Product Description

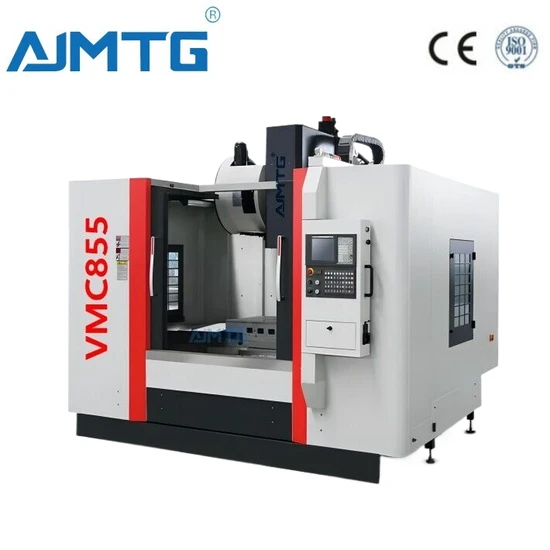

Nantong AJ Industry Limited offers the VMC855(H), VMC1060(H), VMC1160 3/4/5axis Horizontal Metal Cutting Mini Vertical Drilling CNC Milling Machine. Explore our range of CNC machining centers for precision metal cutting.
Best 3 Axis Metal Cutting CNC Milling Machine
Explore our top-of-the-line CNC milling machine for precision metal cutting. Ideal for industrial use, this machine offers high-speed performance and advanced features. Get yours today from Nantong AJ Industry Limited!
| Machining range | X axis travel | 800mm |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Spindle nose to worktable | 150-650mm | |
| Spindle to column guide | 550mm | |
| Worktable | Worktable size | 1000x500mm |
| T slot | 18X5X90mm | |
| Weight load | 500kgs | |
| Spindle specification | Spindle | 8000rpm belt drive Japan make |
| Spindle motor | 7.5kw | |
| Spindle taper | BT40(Ø140) | |
| Feed system | G00 fast feed | 48/48/36m/min |
| G01 cutting feed | 1-10000mm/min | |
| Servo motor | 2*2*3kw | |
| Tool system | Capacity | 24 tools arm type Taiwan make |
| Main parts | Make | |
| Ball screw | Taiwan C3 grade diameter 40mm, pitch 12/16mm | |
| Linear guide | Taiwan HIWIN or Germany 35mm pin roller type | |
| Spindle | Taiwan diameter 140mm , 8000 rpm | |
| Tool magazine | Taiwan BT40-24 tools arm type | |
| Bearing for 3 axis | Germany or Japan Nachi, Screw Angle Support Bearing 30X62 | |
Export Certificate
Company Name: Nantong AJ Industry Limited
Product Name: Best 3 Axis Metal Cutting CNC Milling Machine
Keywords: Metal Cutting CNC Milling, Vertical Machining Center, 3 Axis VMC CNC Milling, CNC Metal Cutting Machine, Machine Tool Equipment, CNC Milling Machine Parts, Top CNC Machine Supplier
