Qunfeng High-Performance Block Making Machine with Vibration Technology

Product Description

Product Description

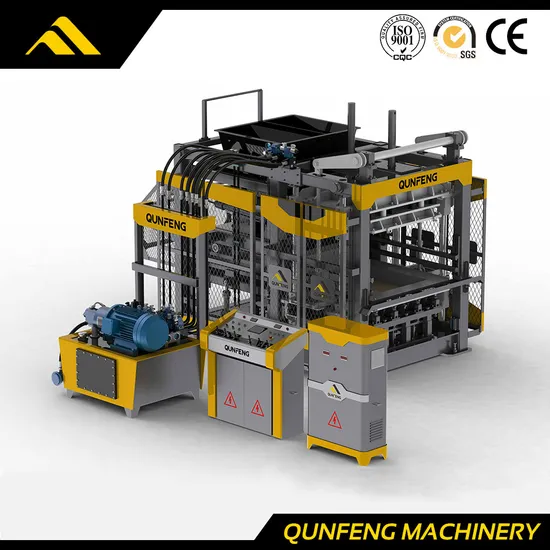

AUTOMATIC BLOCK MAKING MACHINE
(QS1500)

"Supersonic" series intelligent block machine is a technologically advanced, high-efficiency model, co-developed by Qunfeng and esteemed German engineers. Tailored to meet diverse customer needs, it excels in producing special-shape cement products, hollow bricks, paving bricks, curb stones, and solid bricks. This machine stands out with its user-friendly operation, expansive capacity, superior quality, high stability, and remarkably low running costs.
Features
1. Efficient Servo Vibration
The machine employs a servo motor with a forced synchronous mechanism to achieve:
A. Output Increase:Featuring rapid dynamic response and a brief molding cycle, the QS series block machines deliver an 8% higher production rate compared to those using standard motors.
B. Maintenance Cost Reduction: Designed to handle significant load capacity, the servo motor is ideal for block production that requires instantaneous load fluctuations and rapid starts. Equipped with a cooling system, the servo motor remains reliable even in high-temperature conditions.
C. Noise Reduction: Adjusting the phase angle of the eccentric block enables quick elimination of residual vibrations and noise.
2. Automatic Mould Lifting Frame
The mould frame adjustment is facilitated by an automatic lifting frame and auxiliary positioning screw rod, allowing for quick and easy mould changes.
3. Enhanced Material Hopper
Driven by a reducer, the opening and closing of the material hopper door are stabilized and accelerated, thus boosting production efficiency.
4. German Industrial Design:
Designed to meet high-grade industrial standards, this machine exemplifies exceptional quality and top-notch security.
5. Intelligent Control System:
Incorporating Siemens PLC and other globally recognized brands for sensors and electrical components like Germany Turk; the system is user-friendly and efficient. The comprehensive fault alarm and automatic diagnosis functions reduce troubleshooting time by 30%.
6. Efficient Hydraulic System
The hydraulic system features imported high dynamic proportional valves and high-performance vane pumps. This system offers easy parameter adjustments, high pressure tolerance, low noise, energy efficiency, and simple maintenance.
Additionally, it includes pressure multi-point detection, digital oil temperature display, and oil blockage alarm functions.
7. Versatile Block Production
With interchangeable moulds, one machine can produce various types of blocks and bricks, such as hollow blocks, paving bricks (with or without face color), solid bricks, curbstones, and slope protection bricks.
8. Advanced Material Feeding Device:
To accommodate different block production requirements, a variety of material feeding carts are available, including 360° rotary and quick swing shaft feeding carts.
Technical Data

Technical data	QS1500
Dimension(Main Machine) (mm)	3400X2700X3775
Rating pressure (MPa)	21
Vibration	Table vibration
suitable height for block(mm)	50~300
Power ( kW )	84.9
