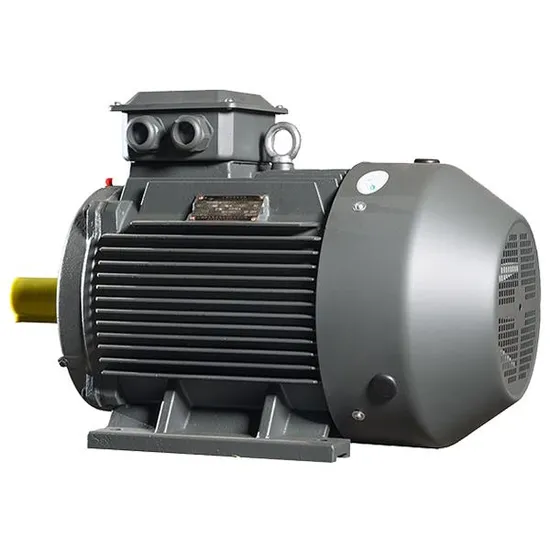

315kw Ye3/Ie3 Series Squirrel-Cage Asynchronous Induction Electric Motor (CE CCC certification)

Product Description

Product Description I. Overview
YE3 series small sized low voltage three-phase induction motor (H80~355) is national united designed series motor with excellent performance, YR315 ~ YR355 series small sized low voltage induction motor has been designed and developed in 1980s and through 30 years' development, now they already have reached to consummation. The products have been produced in a large volume and exported to more than 30 countries and regions all over the world, and they have got the good appraisal form the users.
This series products adopt the high quality materials, good manufacturing process, have the characteristics of high efficiency and energy-saving, small vibration, reliable operating and convenient for mounting and maintenance etc.
The power grade, electric property, mounting dimensions and tolerance are coincident with national standard GB755 Rotating Electric Motor Rating and Property, International Electrical Committee standard IEC34-1 Rotating Electric Motor Rating and Property, and machinery industry standards JB/T10391-2002 etc.
The enclosure protections of this series of motor are IP44, IP54 and IP55 in accordance with the standard of GB4942.1 and IEC34-5 Enclosure Protection Levels of Rotating Electrical Machine.
The cooling method is IC411 in accordance with the standard of GB/T1993 and IEC34-6 Cooling Methods of Rotating Electrical Machine.
The structure and Installation method of this series of motor is IMB3 (horizontal with footing, end cover without flange) IMB5 (frame without footing, end cover with flange), IMB35 (frame with footing, end cover with flange), which complies with the specifications of GB997 and IEC 34-7 Motor Structure and Mounting Type Code.
This sample table lists the technical data and installation sizes of 380V level series motor, and may derive the 440V and 660V level motors in all sizes.
2. Application Scope
This series of motor may be used for driving all kinds of general machines such as the compressor, ventilation fan, water pump, stock-removing machine, transportation machines and other mechanical equipment, and are applied as the prime mover in all industrial and mining enterprises such as the mine, machinery, petrochemical industry and power plant, etc. If the users place an order for the motors that are used for driving the machines with huge rotary inertia such as the blower, coal grinder, rolling machine, crusher, belt machine, etc, they shall provide us with relevant technical data, sign the technical agreement with us as the basis for specific design of motor to ensure the reliable operation of motor.
3. Construction Description
The frame and end-shield of this series motors are made of cast iron; the stator employs the external pressing structure. Stator winding (H315, 355) is composed of flat copper formed hard coil or circular copper soft formed coil; the winding is made of class F or H insulation; the fixing of winding terminals employs the reliable special binding process. The whole stator employs the vacuum pressure impregnation class F solventless paint (VPI) for treatment. Thus, the motor has the excellent and reliable insulation performance and damp-proof and shock resistance.
This series motor's squirrel cage rotor adopts cast-aluminum rotor running reliably. The wound rotor adopts F class insulation material, and employs the vacuum pressure impregnation class F solventless paint (VPI) for treatment.
The motor employs the rolling bearing structure and the basic protection class is IP55. If the motors have higher protection class, the bearing protection class will be increased accordingly.
The H 315~355 series motor has the special oil filling tools may be used for filling and exhausting the oil without stopping the machine.
The main terminal box employs the sealed structure, and the protection class is IP55. They are installed in the motor's right side (view facing shaft end of the electric motor). It also can be installed in the motor's left side according to the requirement of users. The box has the separate grounding terminals.
4. Starting of Squirrel Cage Type Induction Motor
The rotor of induction motor has adopted the advanced computer technique to calculate the temperature and pressure of the squirrel rotor, thus to avoid the motor's destroy at an early period because of the motor's overloaded while starting. So we suggest users to check the items as below: The moment of inertial (after being converted to motor's rotating speed) of the rotating part of the driven mechanical equipment should not over these values of (loading J) item shown in the technical table; Customers should guarantee the voltage of electric network across the motor's terminals not lower than 85% of the rated value during starting; The resistance moment feature of driven machines is the resistance moment feature of water pump and fan. Under the above mentioned conditions, motor may be permitted to be started at actual cold condition for twice continuously, or at hot condition for once, the interval of two times starting is natural stoppage. If there is need to start over limit, it must wait for one hour.
If the moment of inertia of the mechanical rotating part of the driven machinery is over the value shown in (loading J) item of technical data, or there is a requirement to start motor frequently, or it is possible to start the motor under heavy loading, it is necessary to contact with our company for negotiating about specific design so as to ensure the reliable start-up of motor.
Certifications We have obtained such certifications as CE, CCC, EAC, ISO 9001, ISO 14001, ISO45001, etc. Our motor series comply with IEC, NEMA, GOST, ISO, IEEE, JIS, AS standards.

Packaging & Shipping Standard seaworthy package for export
Plywood package or wooden fumigation package
Suitable for long distance transportation by sea
Company Profile Located in Changsha, central China's Hunan province, Changli Electric Co., Ltd., a subsidiary of Changli Group, which was formally known as Changsha Motor Factory founded in 1946, is a leading electric motor manufacturer among Top 10 industrial electric motor manufacturers in China. With over 70 years' production experience and research and development capabilities, we can produce a wide range of motors. After years' development, we have several branches, offices and marketing centers around the country.With an investment of 1094 million yuan, the company covers an area of 400mu (about 270, 000m2), has over 600 sets of precision production equipment, with annual production capacity of 8, 000 MW.At present, we have over 350 employees, in which engineers and technicians accounting for 18%. With a strong technical research and development team and over 70 years' manufacturing experience, we can produce various kinds of low voltage motors, medium voltage motors and high voltage motors.Our testing center is Hunan Medium and Small Sized Motors Quality Supervision Station, an authorized test station of China National Quality Inspection Center, is responsible for the quality supervision and sampling inspection of motor products of various motor manufacturers in Central and Southern China. We can test 40 series of high and low voltage motors.Our products include standard motors, synchronous/asynchronous motors, high efficiency motors, premium efficiency motors, explosion proof motors, special motors, variable frequency speed regulation motors, ultra-high speed motors, submersible motors, wound rotor slip ring motors, permanent magnet motors, large-sized vertical circulating pump motors, etc.
Our Advantages Wide power range available
Excellent starting performance
Available to all industry segments and applications in global supply
Highest reliability to minimize operation cost from downtime
High flexibility with customizable design
Support to witness FAT on site/online
Quality Control In-process Inspection/ Quality Control
All the measuring apparatus and instruments are calibrated each year.
Quality control for each item

Part	Inspection item
Coil	1. Physical and chemical tests for raw materials
	2. Coil winding process inspection
	3. Winding dimension inspection
Iron Core	1. Physical and chemical test report for silicon steel sheet material
	2. Lamination burrs and paint film inspection
	3. Dimensional inspection of laminated steel sheet
Frame	1.Cold welding parts conformity certificate
	2. Finish machining inspection
Rotor	1. Rotor core lamination inspection
	2. Conducting bar welding
	3. Check the material, appearance, conductivity and size of the conducting bar end ring
	4. Check the fastening of the conducting bars in the slots
	5. Dimensional check, including iron core outer diameter
	6. Dynamic balance correction
Shaft	1. Raw material , annealing check
	2 Finish machining check
Stator	1. Iron core compactness check
	2. Check iron core length and section length
	3 Inserting winding check
	4. Iron consumption check
Assembly	1. Plain bearing size and surface quality check
	2. Check the size of the air gap, the coincidence of the axial centerline of the stator and rotor core, the gap of inner fan and windshield
	3 Cleaning check inside the motor
	4 Shaft center height and installation size check
Test	1. Routine test
	2. Type test

Test Each motor must be tested before leaving the factory. After the motor is qualified, the motor can be shipped out. Each motor will have a test report.

Routine test items Winding three-phase DC resistance Winding insulation resistance to ground Winding withstand voltage test No-load current No-load power No-load loss Three-phase no-load current imbalance Locked rotor current Locked rotor torque Maximum torque Rotation direction Vibration: horizontal, vertical, axial Noise

Type test items Full load input power Full load current Stator winding loss Rotor winding loss Iron loss Mechanical loss Other losses Full-load slip ratio Stator winding temperature rise Bearing temperature Thermal winding insulation resistance Overload test Full-load power factor Efficiency

After Sales Service Standard warranty: 12 months after commissioning, or 18 months after delivery, whichever comes first.
If you would like to extend the warranty period, please contact us for details.
