Horizontal Hospital Medical Open Ended Transparent Plastic Testing Test Tube Making Machine Cuvette Injection Production Line for Taking Blood and Body Fluid

Product Description

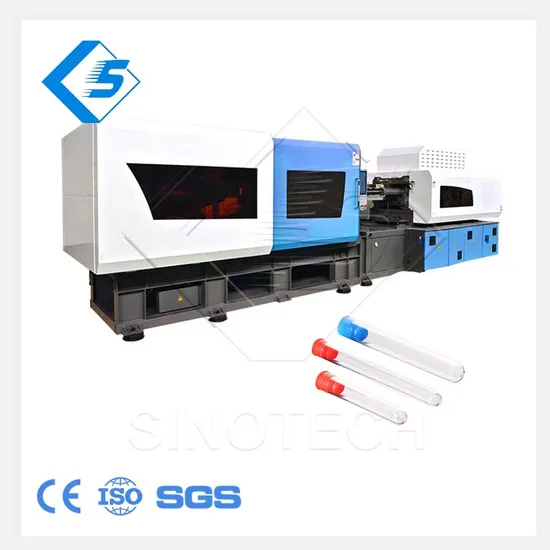

SINOTECH Horizontal Transparent Plastic Tubes making machine cuvette Production Line TTI-90D Made in China
Product Description
Main Features:
1. Self-locking five-point toggle clamping structure, the rigidity of the clamping part is leading in the industry;
2. The servo motor drives the ball screw as an action unit actuator, and the action is stable and accurate;
3. The domestic leading motor drive control system ensures that the repeatability of each action is ±0.01mm;
4. The key components are imported brands, and the stability of the whole machine is high;
5. It is lubricated with high-quality grease and no hydraulic oil is used, which greatly reduces the pollution to the environment;
6. Low noise and low energy consumption to achieve green production. Product Parameters

Item	TTI-90D
INJECTION UNIT
Screw diameter	mm	25	28	32
Theoretical shot volume	cm³	61	77	101
Shot weight (PS)	g	56	70	91
Length/Diameter ratio	L/D	22	22	19.5
Injection pressure	MPa	332	265	203
Holding pressure	MPa	266	212	162
Injection speed	mm/s	240
Injection rate	cm³/sec	118	148	193
Injection stroke	mm	125
Screw speed	rpm	500
Plasticizing capacity (PS)	g/s	10.5	13.3	21.6
Injection unit force	Ton	2.5
No. of heater zones	unit	3+1
Heater input power	KW	9.62
CLAMPING UNIT
Clamping force	Ton	90
Max. daylight	mm	730
Clamping stroke	mm	320
Distance btwn. Tie bars	mm	420*420
Min mould dimension	mm	295*295
Mould thickness range	mm	150-410
Ejector force	Ton	3
Ejector stroke	mm	80
POWER UNIT
Electric capacity	KVA	41.5
Total Current	A	70.0

Seller Recommendation

Detailed Photos

Application
Company Profile
Packaging & Shipping
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.

Q2:What about the payment way?
A2:TT,L/C at sight or ****** trade assurance.

Q3:If you can extend the guarantee time?
A3:Yes.Our guarantee time is 24 months.Double times of other factory because we have strong confidence for our product.

Q4:If you will send engineer coming to our factory to install and test the machines?
A4:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.

Q5:If you have CE,SGS,ISO certificate?
A5:Yes,except these,if you also need other certificates,we also can help to apply.

Q6:If we buy your machines, can you offer us wear-out spare pats?
A6:Yes,We provide our high quality machine 2 years' guarantee,and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

Q7:The voltage,if you can design according to our request?
A7:Yes.

Q8:If you support ****** trade assurance pay?
A8:Yes.100% support.
