New Popular Three Tier Layer Roofing Sheet Making Different Color Metal Steel Products Roof Tile Cold Roll Forming Making Machine with High Speed

Product Description

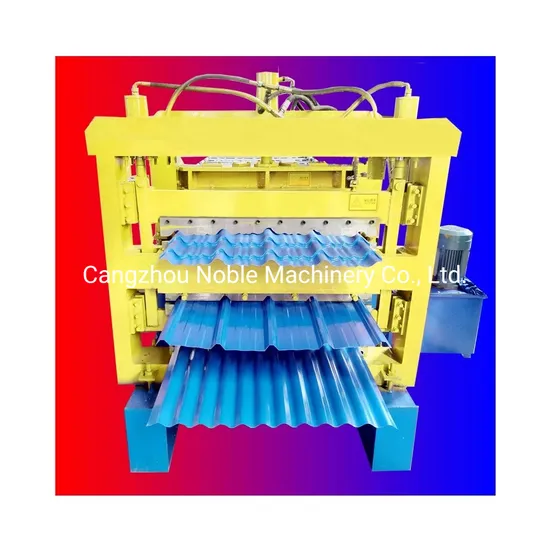

Three Layer Profile Roofing Sheet Roll Forming Machine
Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.
1. Component line1000 Roof Panel Cold Roll Forming Machine

No.	Name	Unit	Qty
1	Man-made uncoiler	set	1
2	Main machine for roll forming	set	1
3	Control system	set	1
4	Hydraulic system	set	1
5	mold pressing machine	set	1
6	Blade	set	1
7	Receiving table	set	1

Product parameter

Series	Details	Parameter
ProducT	Raw material	PPGI /PPGL
	Material thickness	0.25-0.8mm
	Product cutting length	Adjustable
	Coil ID	508 mm
	Coil width	1250 mm
	Coil weight	5T
Decoiler	Work type	hand type
	Structure	Steel channel for basic frame
	Loading capacity	5 Tons
	Coil inner diameter	550-610 mm(adjustable)
	Max coil width	1250 mm
Roll forming machine	Feeding device	Platform, the width is adjustable
	Roller stations	20/22/18 stages The distance between 2 stages is 443mm
	Roller shaft	Shaft material: 45# steel
		Shaft diameter: φ70 mm
	Roller	Roller material: 45# steel
			Roller spacer	Anti rusty treatment
	Work speed	25m/min
	Main structure	Middle plate weld with structure
	Motor power	5.5KW ,SHANGHAI LICHAO BRAND
	Transmission	1.0INCH CHAINS
	Machine basic frame	400# H steel welded with diagonal bracing inside
	Bearing	Chinese famous brand: Harbin
	PLC control system	Frequency brand	Delta (original)
PLC brand PLC		Delta (original)
Screen type		Touch screen also have button
Screen language		English / Chinese/Arabic
Low voltage apparatus		TAIWAN DELTA
Encoder		Omron
Function		Cutting to length, quantity and work speed control.
Hydraulic system	Work type	Hydraulic cutting
	Driving type	By pillar type cylinder
	Hydraulic motor power	4.0KW
	Cutter material	Cr12
	Cutting length tolerance	±1-3mm
Product collect table	Length	3m
	Width	1.3m
	Structure	Shaped steel welded
Machine weight	Around 4Tons

Detailed photo
Decoiler ( Selectable configuration ):
Optional configuration ): Hydraulic decoiler; Loading Lecel: 5tons(common), 8tons, 10tons, 15tons or as requirement;
Loading Width: Max. 1250mm or 1450mm (common);
Loading Inner Diameter: φ450-550mm;
Loading Outer Diameter: Max. φ1500mm
Forming station : body frame made from H450 type steel by welding
Side wall thickness: Q235 t20mm
Rollers manufactured from 45# Steel,CNC lathes,Heat Treatment,hard Chrome Coated
Gear/Sprocket driving,about 18-step(Upper Layer)/18-step(Down Layer) to form
Main Motor=11KW,Frequency speed control
Chain: ZIQIANG (by China TOP 1 brand DONGHUA Group)
All the screw bolts with grade 8.8 Real forming speed 18-25 m/min(Not include cutting time)
Post Hydraulic Cutting Device Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking Hydraulic motor:5.5 KW ; Cutting tool material: Cr12MoV The cutting power is provided by the main engine hydraulic station

PLC Controller & Hydraulic System
Collect Product Table 1. Automatic Stacker (optional configuration)--Length: According to customized;
2. Manual Simple collecting product table (standard configuration)--Length: 3m(common) or as customized.
Product feature
1 More efficient and accurate execution of production orders; 2. High equipment reliability; 3. Little waste of materials and energy; 4. High productivity; 5. High quality materials, get a longer service life; 6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll; 7. Customized coil processing solutions to solve all aspects of technical problems.
1 More efficient and accurate execution of production orders; 2. High equipment reliability; 3. Little waste of materials and energy; 4. High productivity; 5. High quality materials, get a longer service life; 6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll; 7. Customized coil processing solutions to solve all aspects of technical
Why Choose this machine? 1. Lifetime seivices 2. Introduced Mitsubishi PLC with touch screen to machine controll system. 3. One worker operation (minimum) 4. Lifetime>10years: roller cover with 0.05mm chrome 72mm diameter solid steel shaft Cutting blade with heat treatment. 5. Cr12 mould steel cutter with quenched treatment. 6. Product cut-to-length. 8.Technician overseas installing and training available After Sales Service
1. Engineer will give free training lessons to labors in buyer's factory. 2. The Buyer need buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer. 3. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by incorrect operations, we will provide the buyer spare parts at cost price. 4. We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide
