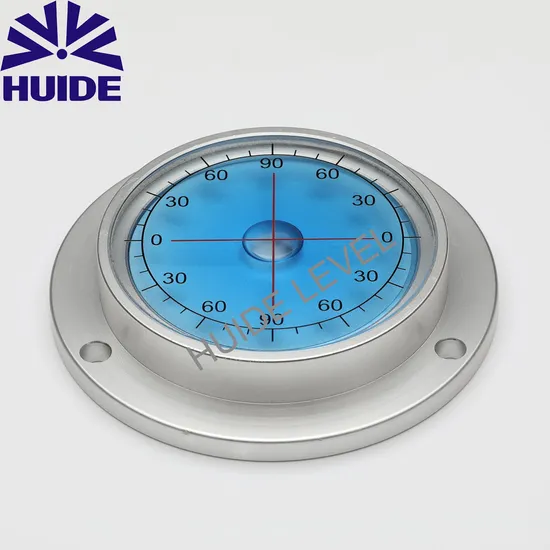

Mc-907021 Metal Aluminum Bubble Level Vial for Construction Vehicles

Product Description

Product Description

Specifications	Flange Diameter	90mm
	Horizon Diameter	70mm
	Sensitivity	60 arc minutes per 2mm
	Material	Aluminium base and glass window
	Height	21mm
	Ring Diameter	-
	Ring Color	Black
	Liquid Color	Clear
	Storage Temp	-40ºC to +90ºC
	Remark	All Specifications above can be customized
Drawing
Features	Sensitivity from 5 to 120 arc minutes
	Precision optical top lens
	CNC mechined made from solid aluminium
	Silver anodised finish

About Us
Huide Level Instrument Co., Ltd. was founded in 2008. Our plant area covers more than 11,000 square meters, and we have a total of 130 employees, including more than ten R&D staff. We are one of the largest suppliers of bubble level in China at present with more than a dozen patents and environmental certificates for various materials. Our product line covers metal leveling bubble, glass leveling bubble, plastic leveling bubble, inclinometer, and various angle sensors, among others. These products find application in a wide range of fields, including geodesy, electronic measuring equipment, engineering machinery, photographic equipment and aerospace, to name a few. We are honored to have earned the trust of renowned international manufacturers such as Bosch,Leica,SANY and Shimadzu. We have advanced production technology protected by patents, welcome to visit our factory!
