China Inclined Guide Rail Machine Small CNC Lathe with Bar Feeder
| US$55,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
BL-CSL325/326
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Machineable Bar Dia.E Bar Dia.
36mm
Main Spindle Bore
36mm
Max. Machineable Length
310mm
Max. Face Drilling Dia.
13
Max. Face Tapping Dia.
M12
Main Spindle Speed
6000
Transport Package
Plywood Case
Specification
2610*1640*1920mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description

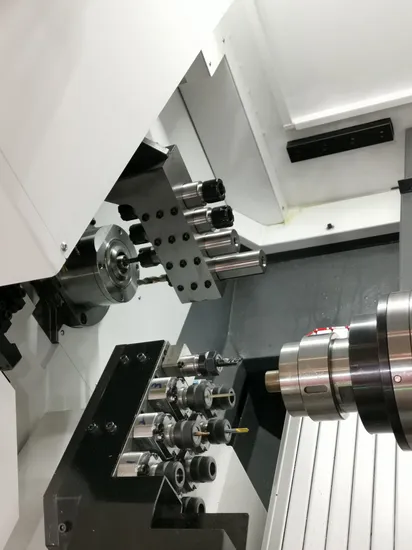

Twin spindle small swiss type cnc lathe machine with bar feeder(BL-CSL325/326)- Dual spindle, total 5 axes(CSL325)/6 axes(CSL326,mount Y2 axes)
- Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt meehanite resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity
- Adopt high precision built-in electro-spindle,NSK/NTN super high precise angle contact ball bearing, achieve spindle's high rigidity and good precision retention,spindle flop≤2μm
- Adopt JAPAN THK brand high precision ball screw and linear guideway
- Adopt gang type tool, can achieve turning/milling/drilling etc combined machining by side-mounted live tool and C axes
- After mount automatic bar feeder, can realize automatic machining
- Suitable for complex, small-sized,precise,slender axles workpiece machining
Details:
| Item | Unit | BL-CSL325 | BL-CSL326 | |
| Max. machineable bar dia. | mm | Φ32(opt.:Φ36) | ||
| Main spindle bore | mm | Φ36 | ||
| Max. machineable length | Rotary guide bushing | mm | 310(one time feed) | |
| Guide bushless | mm | 2.5×ΦD | ||
| Max. face drilling dia. | mm | Φ13 | ||
| Max. face tapping dia. | mm | M12 | ||
| Main spindle max speed | rpm | 6000 | ||
| Main spindle motor | kw | 6.3 | ||
| Main spindle index | / | C axes(continuation) | ||
| Back spindle max speed | rpm | 6000 | ||
| Back spindle motor | kw | 4.2 | ||
| Back spindle index | / | C axes(continuation) | ||
| Radial type live tool max speed | rpm | 4800 | ||
| Rapid moving speed(X1/Y1/Z1/X2/Y2/Z2) | m/min | 24/30/30/30/None/30 | 24/30/30/30/24/30 | |
| Repeat positioning accuracy | mm | ≤0.003 | ||
| O.D. tool | mm | 6 position 16 | ||
| Main spindle side axial drilling tool(fixed type) | mm | 4 position ER20 | ||
| Main spindle side radial type live tool | mm | 3 position ER16+1 position ER20 | ||
| Back spindle side back drilling tool(fixed type) | mm | 4 position ER20 | 4(ER16)(opt: live tool) | |
| Back spindle side axial type live tool | mm | / | 4(ER16) | |
| Back spindle side axial type live tool max speed | rpm | / | 6000 | |
| Coolant pump | kw | 0.46 | ||
| Overall size | mm | 2610×1640×1920 | ||
| N.W. | kg | 3800 | 3900 | |
Main parts brand:
| Item | Brand |
| CNC controller | TAIWAN-SYNTEC |
| Servo electro-spindle | TAIWAN |
| Servo motor&driver | TAIWAN-SYNTEC |
| Spindle encoder | TAIWAN-SYNTEC |
| Spindle bearing | JAPAN-NSK/NTN P4 class |
| Ball screw bearing | JAPAN-NSK/NACHI |
| Ball screw | TAIWAN HIWIN/JAPAN-THK |
| Linear guideway | TAIWAN HIWIN/JAPAN-THK |
| Lubrication system | JAPAN-HERG |
| Main electricity parts | FRANCE-SCHNEIDER |
| Pneumatic parts | TAWAN-AIRTAC |
| Lock nuts | TAIWAN-YINSH |
| Shaft coupling | GERMANY-KTR |
Standard configuration:
- SYNTEC 220TB CNC controller
- Rotary guide bushing
- Dual spindle
- Y2 axes(for CSL326)
- Parts catcher& convey belt
Optional configuration:
- High pressure coolant system
- Oil mist collection system
- Angular live tool
- Automatic chip conveyor
- Automatic bar feeder
Other models choice:
All our machines range:
About us:
