Used CNC Lathes Machinery Ck6150A for Sale Lathe Industrial Machine Turning Lathe
Basic Info.
Model NO.
CK6150A
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Swim Over Bed
500mm
Max. Swim Over Carriage
280mm
Max. Length of Workpiece
750/1000/1500/2000mm
Stations of Tool Holder
4 Station
Max. Size of Tool Post
25*25mm
Spindle Speed
150-2000rpm
Spindle Bore
82mm
Chuck Size
250mm
Motor Power
7.5kw
System
GSK or Others
Transport Package
Wooden Case
Specification
CE, SGS, ISO
Trademark
Crystal
Origin
Shandong, China
HS Code
8458110090
Production Capacity
35 PCS/ Mounth
Product Description

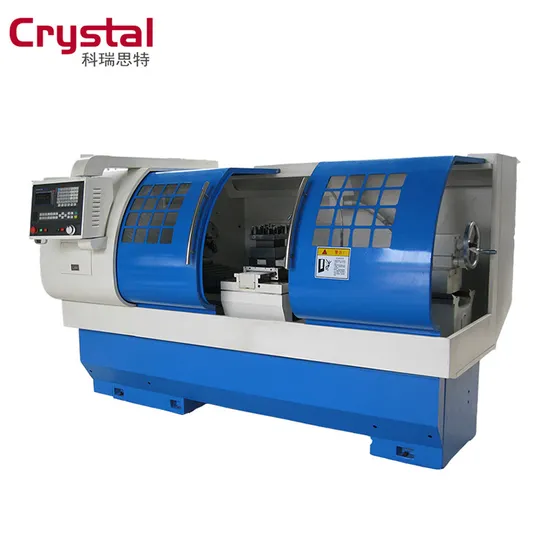

Used CNC Lathes Machinery Ck6150A for Sale Lathe Industrial MacMachine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards. Product Display
CK6150A CNC Lathe Features:
1.A high strength, widening the carriage, suitable for heavy cutting
2.Four position electric turret
3.Frequency conversion stepless speed regulation
4.Standard configuration: manual chuck
5.Optional configuration : hydraulic chuck
CK6150A CNC Lathe Specifications:
| Item | CK6150A |
| Max. Swing over bed | Φ500mm |
| Max. Swing over cross slide | Φ280mm |
| Processing length | 750mm/1000mm/1500mm/2000mm |
| Width of the bed | 400mm |
| Diameter of spindle bore | Φ82mm |
| Spindle taper | 1:20/Φ90 |
| spindle nose | Type of spindle head D-8 |
| Spindle speed | 150-2000rpm |
| chuck size | 250mm |
| Tool holder | 4 station |
| Tool bar section | 25X25mm |
| Main motor power | 7.5KW |
| X/Z axis position accuracy | 0.02/0.025mm |
| X/Z axis repeatability | 0.01/0.012mm |
| X/Z axis torque | 6/10N.M |
| X/Z axis travel | X 360 Z 750mm/1000mm/1500mm |
| X/Z axis fast feeding speed | 8/10 M/MIN |
| Tailstock sleeve travel | 150mm |
| Tailstock taper | MT5 |
| Dimension | 2410/2660/3160*1560*1730mm |
| weight | 2800/3200/3500kg |
Detail Show
CK6150A Lathe Optional Configuration :
1. Siemens system /Fanuc system
2. Hydraulic chuck/ pneumatic chuck
3. Hydraulic tailstock/ pneumatic tailstock
4. 6-piece electric tool post/8- piece electric tool post/ Gang type tool
5. Auto bar feeder
